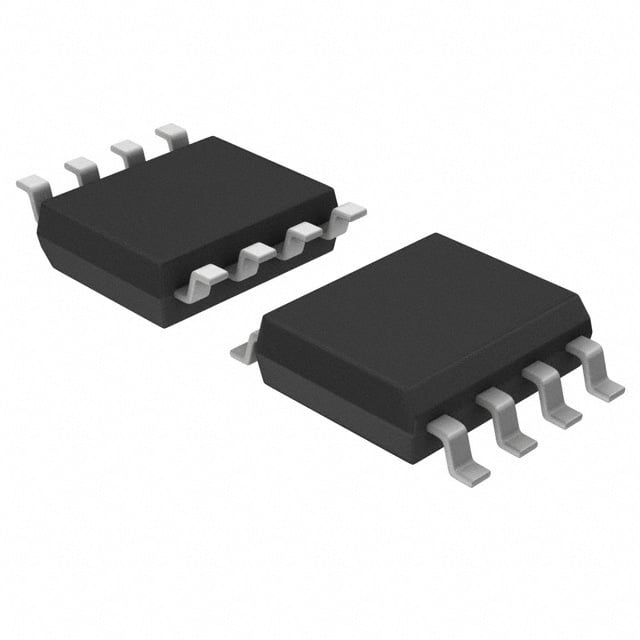

PCA9306DCTR TI Voltage Level Translator | SM8 | Dual Bidirectional, 1.2V-3.3V

Product Overview

The PCA9306DCTR is a dual bidirectional I2C-bus and SMBus voltage-level translator from Texas Instruments, designed to interface between different voltage domains in mixed-voltage systems. It operates with a supply voltage range from 1.2V to 3.3V on both sides, enabling seamless communication between low-voltage and standard-voltage I2C devices. The device is housed in a compact SM8 (SOT-23-8) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual bidirectional voltage translation without direction control
• Supports I2C-bus and SMBus standards
• Auto-sensing of voltage levels on each port
• Low ON-state resistance (typically 5 Ω)
• High noise immunity
• Small footprint SM8 package

Target Applications

• 5G base station control interfaces (e.g., between baseband processor and RF transceiver)
• Automotive dashboard displays (e.g., connecting MCU to display driver)
• Industrial sensor networks (e.g., I2C temperature sensors to FPGA)
• Portable electronics (e.g., smartphone camera module interface)
• Server and networking equipment (e.g., SMBus for power management)
