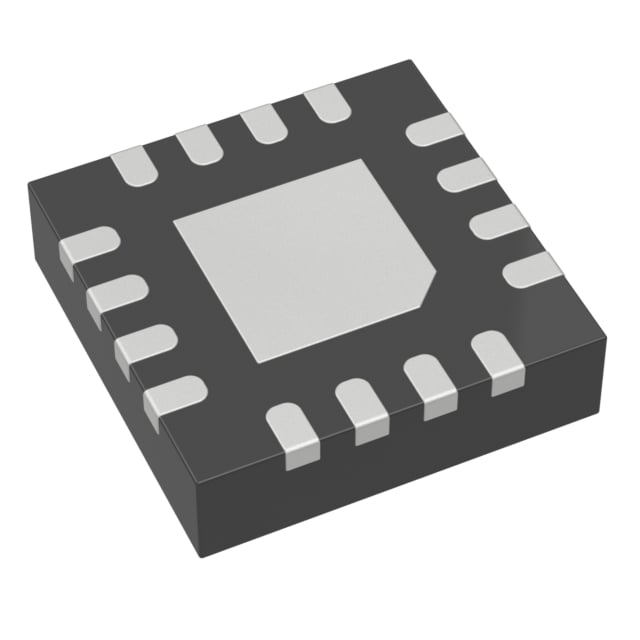

PCA9534ARGTR TI I2C GPIO Expander | 16-VQFN (3x3) | 8-bit, 400kHz

Product Overview

The PCA9534ARGTR from Texas Instruments is a 8-bit I2C-bus and SMBus I/O expander designed for 2.3-V to 5.5-V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock (SCL) and serial data (SDA)). The device features an 8-bit quasi-bidirectional I/O port with open-drain outputs and a 400-kHz fast I2C bus. Three hardware address pins allow up to eight devices on the same bus, enabling up to 64 I/Os. The PCA9534ARGTR comes in a compact 16-pin VQFN (3x3 mm) package, ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• 8-bit I/O expander with I2C interface
• Operating supply voltage range: 2.3 V to 5.5 V
• 400-kHz fast I2C bus compatibility
• Three hardware address pins (up to 8 devices)
• Open-drain active-low interrupt output
• Low standby current consumption
• Compact 16-pin VQFN (3x3 mm) package
• ESD protection exceeds JESD 22

Target Applications

• 5G base stations: control and status monitoring of power amplifiers and filters
• Automotive dashboard: reading button inputs and controlling LEDs
• Industrial PLCs: expanding digital I/O for sensor and actuator interfaces
• Server motherboards: managing fan tachometers and reset signals
• Consumer electronics: GPIO expansion for smart home devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCA9534ARGTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
