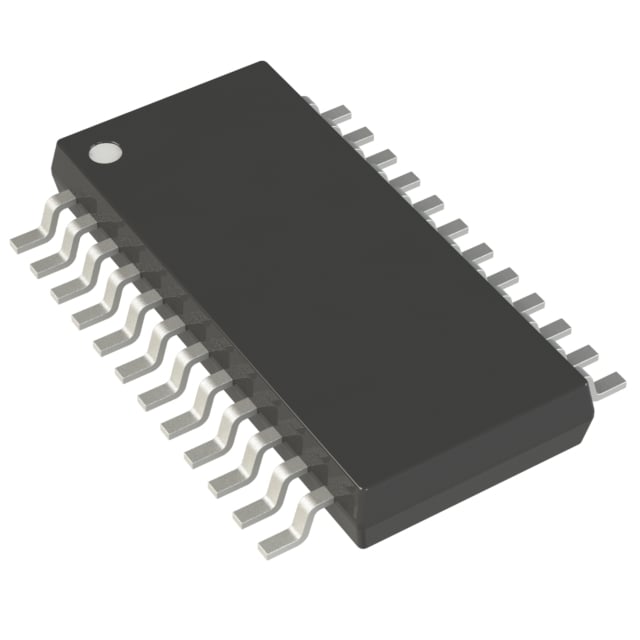

PCF8575DBR TI I/O Expander | 24-SSOP | 16-bit, I2C

Product Overview

The PCF8575DBR from Texas Instruments is a 16-bit I/O expander for I2C-bus applications, providing general-purpose remote I/O expansion via the two-line bidirectional I2C bus (serial clock (SCL) and serial data (SDA)). It operates from a 2.5V to 5.5V supply and features 16 quasi-bidirectional I/O ports. The device includes an interrupt output (INT) that can be connected to the microcontroller's interrupt input, allowing the system to be notified when input data changes. The PCF8575DBR is available in a compact 24-SSOP package, making it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16-bit remote I/O expander for I2C-bus
• Quasi-bidirectional I/O ports
• Interrupt output (INT) for input change detection
• Low standby current consumption
• Open-drain active-low interrupt output
• I2C bus interface with address selection (3 hardware address pins)
• Compatible with most microcontrollers
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control and monitoring
• Automotive dashboard and infotainment systems
• Industrial automation and PLC I/O expansion
• Smart home controllers and sensor hubs
• Medical equipment user interface panels
• Server and networking equipment status LEDs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCF8575DBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
