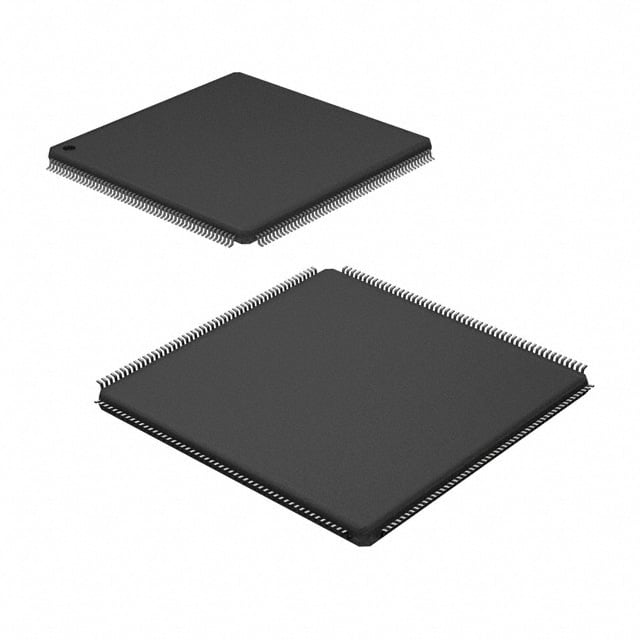

PCI1520PDV TI PC Card Controller | 208-QFP (28x28) | 3.3V, PCI 2.2

Product Overview

The PCI1520PDV is a high-performance PCI-to-PC Card controller from Texas Instruments, designed to bridge the PCI bus to one or two PC Card (PCMCIA) sockets. It supports both 16-bit PC Cards and 32-bit CardBus cards, providing a versatile interface for mobile and embedded systems. Housed in a 208-pin QFP package (28x28mm), this device operates at 3.3V core voltage with 5V-tolerant I/O, ensuring compatibility with legacy and modern peripherals.

Detailed Technical Specifications

Key Features

• Dual-slot PC Card controller supporting two independent sockets
• Compliant with PCI Local Bus Specification Revision 2.2
• Supports 16-bit PC Cards (PCMCIA 2.1/JEIDA 4.2) and 32-bit CardBus (PC Card Standard 7.0)
• Integrated voltage regulation for 3.3V and 5V card operation
• Advanced power management with support for suspend and wake-up events
• Programmable interrupt generation and routing
• Hot insertion and removal support

Target Applications

• Notebook and laptop computers with dual PC Card slots
• Industrial embedded systems requiring PCMCIA/CardBus expansion
• 5G base station control modules for legacy PC Card interfaces
• Automotive infotainment dashboards with PC Card connectivity
• Portable data acquisition systems using CardBus cards

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCI1520PDV. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

PCI1520PDV 是德州儀器（TI）推出的一款高性能 PCI 至 PC Card 橋接控制器，用於將 PCI 總線連接至一個或兩個 PC Card（PCMCIA）插槽。它支持 16 位 PC Card 和 32 位 CardBus 卡，為移動和嵌入式系統提供靈活的接口。該器件採用 208 引腳 QFP 封裝（28x28mm），核心電壓 3.3V，I/O 可耐受 5V，確保與傳統及現代外設的兼容性。

詳細技術參數

核心特性

• 雙插槽 PC Card 控制器，支持兩個獨立插槽
• 符合 PCI 局部總線規範 2.2 版
• 支持 16 位 PC Card（PCMCIA 2.1/JEIDA 4.2）和 32 位 CardBus（PC Card 標準 7.0）
• 集成電壓調節，支持 3.3V 和 5V 卡操作
• 先進電源管理，支持掛起和喚醒事件
• 可編程中斷生成和路由
• 支持熱插拔

典型應用場景

• 配備雙 PC Card 插槽的筆記本電腦
• 需要 PCMCIA/CardBus 擴展的工業嵌入式系統
• 用於傳統 PC Card 接口的 5G 基站控制模塊
• 帶 PC Card 連接的汽車信息娛樂儀表板
• 使用 CardBus 卡的便攜式數據採集系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 PCI1520PDV 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
