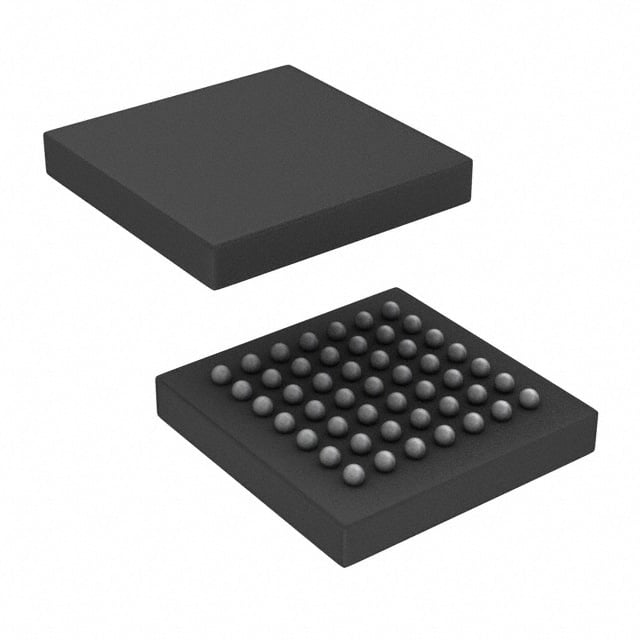

SCAN921023SLC TI Serializer/Deserializer | 49-NFBGA(7x7) | 10-66 MHz, 10-bit

Product Overview

The SCAN921023SLC from Texas Instruments is a high-speed 10-bit serializer/deserializer (SerDes) designed for point-to-point data transmission over a single differential pair. It operates over a wide frequency range of 10 to 66 MHz, supporting data rates up to 660 Mbps. The device is housed in a compact 49-ball NFBGA (7x7 mm) package, making it ideal for space-constrained applications. It features embedded clock recovery, eliminating the need for a separate clock line, and includes IEEE 1149.1 JTAG boundary scan for enhanced testability.

Detailed Technical Specifications

Key Features

• 10-bit parallel-to-serial and serial-to-parallel conversion
• Embedded clock recovery for reduced EMI
• IEEE 1149.1 JTAG boundary scan support
• Low power consumption: 150 mW typical at 66 MHz
• Wide operating temperature range: -40°C to +85°C
• Small footprint: 49-ball NFBGA (7x7 mm)
• Single differential pair transmission

Target Applications

• 5G base station backhaul links
• Automotive camera modules and dashboard displays
• Industrial camera and machine vision systems
• Medical imaging equipment (e.g., ultrasound probes)
• High-speed data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SCAN921023SLC. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SCAN921023SLC 是德州儀器（TI）推出的一款高速10位串行器/解串器（SerDes），專為通過單一差分對進行點對點數據傳輸而設計。它支持10至66 MHz的寬頻率範圍，數據速率高達660 Mbps。該器件採用緊湊的49球NFBGA（7x7 mm）封裝，非常適合空間受限的應用。它內嵌時鐘恢復功能，無需單獨的時鐘線，並包含IEEE 1149.1 JTAG邊界掃描，增強了可測試性。

詳細技術參數

核心特性

• 10位並行到串行和串行到並行轉換
• 內嵌時鐘恢復，降低EMI
• 支持IEEE 1149.1 JTAG邊界掃描
• 低功耗：66 MHz時典型150 mW
• 寬工作溫度範圍：-40°C 至 +85°C
• 小尺寸：49球NFBGA (7x7 mm)
• 單差分對傳輸

典型應用場景

• 5G基站回傳鏈路
• 汽車攝像頭模塊和儀表盤顯示
• 工業相機和機器視覺系統
• 醫療成像設備（如超聲探頭）
• 高速數據採集系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SCAN921023SLC 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
