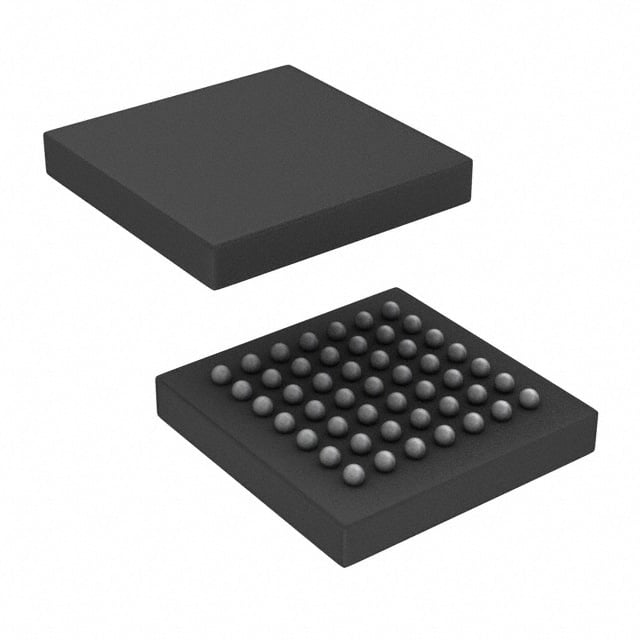

SCANSTA101SM TI IEEE 1149.1 Test Bus Controller | 49-NFBGA (7x7) | 2.5V/3.3V, 50MHz

Product Overview

The SCANSTA101SM from Texas Instruments is a high-performance IEEE 1149.1 (JTAG) test bus controller designed for advanced system-level testing and debugging. It supports both 2.5V and 3.3V operation, enabling seamless integration into mixed-voltage environments. Housed in a compact 49-NFBGA (7x7 mm) package, this device provides a cost-effective solution for boundary-scan testing in complex digital systems. With a maximum clock frequency of 50 MHz, it ensures fast test execution and reduced test time.

Detailed Technical Specifications

Key Features

• Compliant with IEEE 1149.1 standard for boundary-scan testing
• Dual voltage support: 2.5V and 3.3V
• High-speed operation up to 50 MHz
• Compact 49-NFBGA package for space-constrained designs
• Low power consumption for portable applications
• Industrial temperature range (-40°C to +85°C)
• Supports multiple scan chains for complex system testing

Target Applications

• 5G base station control boards for boundary-scan testing
• Automotive dashboard infotainment systems for PCB testing
• Industrial automation PLCs for in-system programming and debug
• Networking equipment (routers, switches) for JTAG chain management
• Medical imaging devices for reliable test access

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SCANSTA101SM. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
