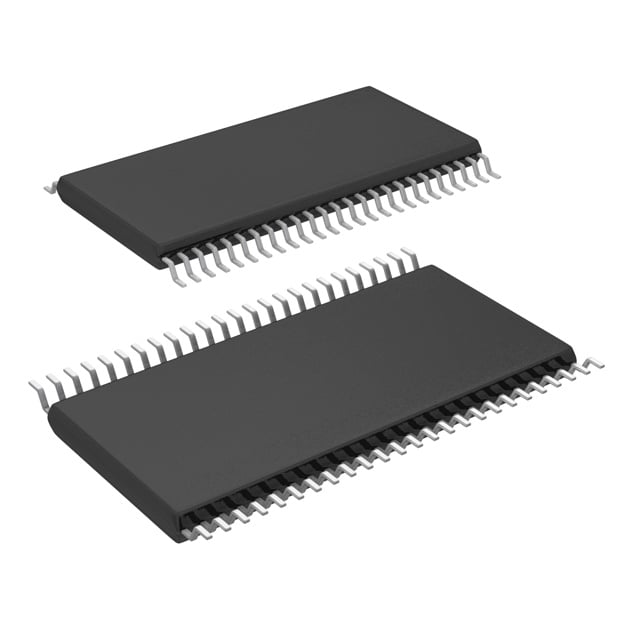

SCANSTA111MT/NOPB TI IEEE 1149.1 JTAG Bus | 48-TSSOP | 2.7V-3.6V, 50MHz

Product Overview

The SCANSTA111MT/NOPB from Texas Instruments is a high-performance IEEE 1149.1 (JTAG) bus switch designed for test and debug applications. It enables multiplexing of multiple JTAG chains into a single test access port (TAP), simplifying board-level testing and reducing test time. Housed in a 48-pin TSSOP package, this device operates over a wide voltage range of 2.7V to 3.6V and supports clock frequencies up to 50MHz. The SCANSTA111MT/NOPB is RoHS compliant and lead-free (NOPB), making it suitable for environmentally conscious designs.

Detailed Technical Specifications

Key Features

• IEEE 1149.1 compliant JTAG bus switch
• Low on-state resistance (5 Ω typical) for minimal signal degradation
• Supports hot insertion without glitches
• Power-down mode reduces power consumption
• Flow-through pinout for easy PCB layout
• Industrial temperature range (-40°C to +85°C)

Target Applications

• 5G base station test and debug interfaces
• Automotive dashboard and infotainment system JTAG multiplexing
• Industrial control systems with multiple JTAG chains
• FPGA and CPLD configuration and testing
• Telecommunications equipment boundary scan testing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SCANSTA111MT/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
