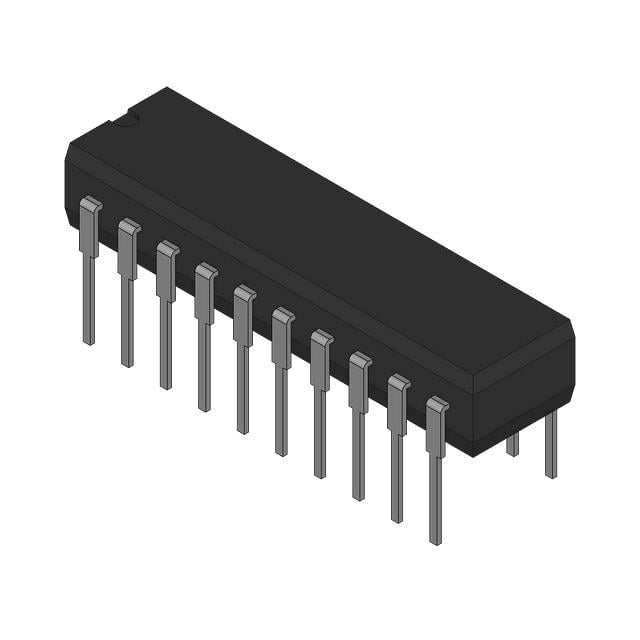

SN54ALS688J TI 8-Bit Identity Comparator | 20ns, 4.5V-5.5V

Product Overview

The SN54ALS688J from Texas Instruments is a high-speed 8-bit identity comparator designed for digital systems requiring fast and accurate data comparison. It compares two 8-bit words (P and Q) and provides a low-level output when they are equal. Fabricated with advanced Schottky-clamped ALS technology, it offers a typical propagation delay of 20 ns, making it suitable for high-performance computing and communication systems. The device operates over a wide supply voltage range of 4.5V to 5.5V and is specified for the full military temperature range (-55°C to +125°C). Housed in a 20-pin ceramic DIP package, it ensures reliable operation in harsh environments.

Detailed Technical Specifications

Key Features

• 8-bit identity comparison with active-low output (P=Q)
• Fast propagation delay: 20 ns typical at 5V
• Low power consumption: 50 mW typical
• Schottky-clamped ALS technology for high speed
• Wide supply voltage range: 4.5V to 5.5V
• Military temperature range: -55°C to +125°C
• Input clamp diodes for improved noise margin
• Standard 20-pin DIP package

Target Applications

• Address comparison in memory systems (e.g., SRAM/DRAM controllers)
• Data validation in 5G base station control logic
• Error detection in automotive dashboard displays
• Industrial PLCs for sensor data matching
• Military avionics for secure data comparison

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN54ALS688J. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
