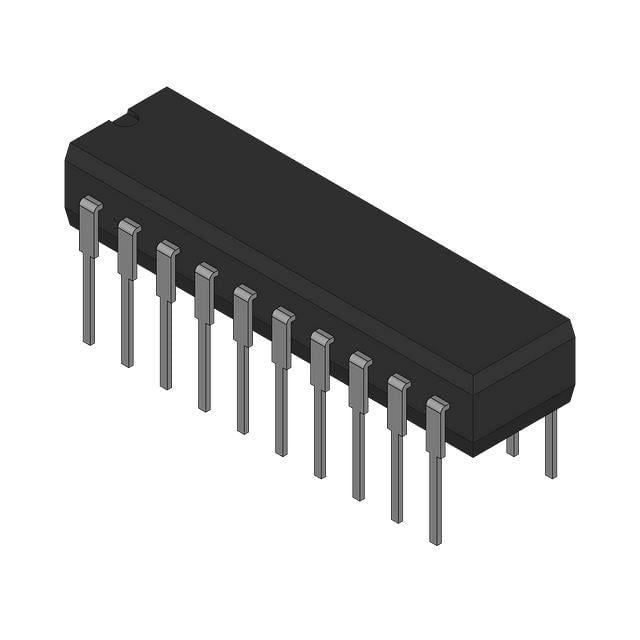

SN54HC534J TI Flip Flop D-Type Bus 8-Bit 3-State 20-CDIP

Product Overview

The SN54HC534J is a high-speed, octal D-type flip-flop with 3-state outputs from Texas Instruments. It features a buffered common clock (CLK) and output enable (OE) inputs, designed for bus-oriented applications. The device stores data on the rising edge of the clock and provides inverted outputs. It operates over a wide voltage range of 2V to 6V, making it suitable for battery-powered and industrial systems. The 20-pin ceramic DIP package ensures reliability in harsh environments.

Detailed Technical Specifications

Key Features

• 8-bit D-type flip-flop with inverted 3-state outputs
• Buffered common clock and output enable
• Wide operating voltage range: 2V to 6V
• High noise immunity: typical VNH = VNL = 28% VCC
• Low power consumption: ICC typically 80µA
• Outputs can drive up to 10 LSTTL loads
• Inputs are TTL-voltage compatible
• ESD protection exceeds 2000V per MIL-STD-883

Target Applications

• 5G base station control logic
• Automotive dashboard display drivers
• Industrial programmable logic controllers (PLCs)
• Data acquisition systems
• Memory address latching
• Bus interface for microprocessors
