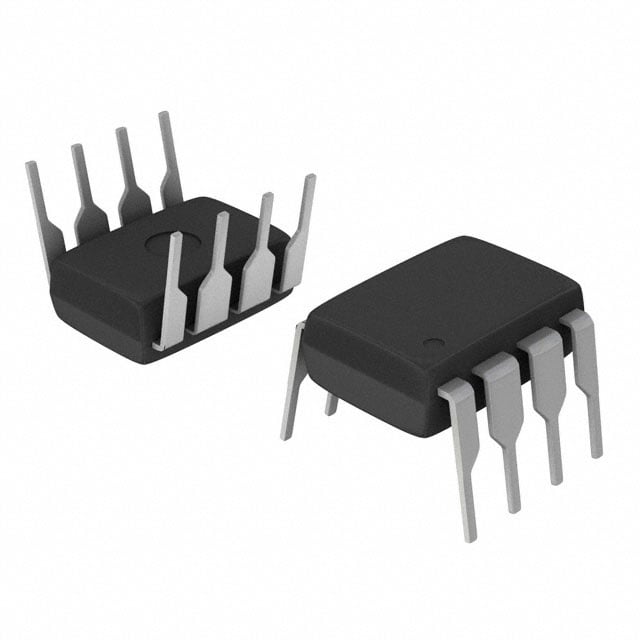

SN65HVD21P TI RS-485 Transceiver | 8-PDIP | 3.3V, 32Mbps

Product Overview

The SN65HVD21P from Texas Instruments is a robust RS-485/RS-422 transceiver designed for balanced data transmission in industrial environments. Housed in an 8-pin PDIP package, it operates from a single 3.3V supply and delivers data rates up to 32 Mbps. The device features a differential output voltage of ±1.5V (min) and a receiver input sensitivity of ±200 mV, ensuring reliable communication over long cable runs. With extended temperature range (-40°C to +85°C) and built-in protection against electrostatic discharge (ESD) up to ±15 kV (HBM), the SN65HVD21P is ideal for harsh industrial applications.

Detailed Technical Specifications

Key Features

• Single 3.3V supply operation
• High data rate up to 32 Mbps
• ±15 kV ESD protection on bus pins
• Extended temperature range
• Low power consumption
• Thermal shutdown protection
• Open-circuit, short-circuit, and idle bus fail-safe

Target Applications

• Industrial automation: PLCs, motor drives, sensors
• Building automation: HVAC controllers, lighting systems
• Telecommunications: 5G base station backhaul, network switches
• Automotive: infotainment systems, dashboard clusters
• Medical equipment: patient monitoring, diagnostic devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65HVD21P. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
