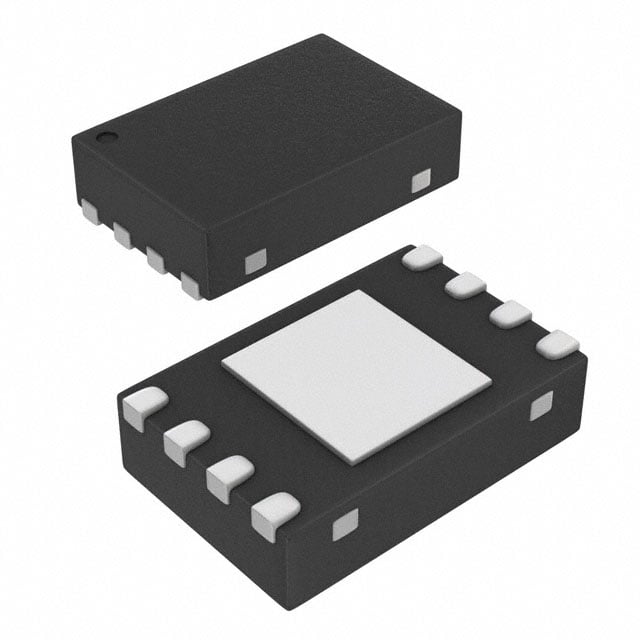

SN65LVDS18DRFR TI LVDS Buffer | 8-WSON (2x2) | 400 Mbps, 1.65V-3.6V

Product Overview

The SN65LVDS18DRFR is a high-speed differential line driver and receiver from Texas Instruments, designed for LVDS (Low-Voltage Differential Signaling) applications. It operates from a single 1.65V to 3.6V supply and supports data rates up to 400 Mbps. The device is housed in a compact 8-WSON (2x2 mm) package, making it ideal for space-constrained designs. It features a flow-through pinout for easy PCB layout and includes integrated termination resistors for improved signal integrity.

Detailed Technical Specifications

Key Features

• Low-voltage differential signaling with 350 mV typical output swing
• Integrated 100-ohm termination resistor
• Flow-through pinout simplifies PCB routing
• High ESD protection: ±8 kV (HBM)
• Low power consumption: 12 mW at 3.3V
• Fail-safe receiver outputs for open, shorted, or terminated inputs

Target Applications

• 5G base station backplane communication
• Automotive dashboard display links
• Industrial camera data transmission
• Medical imaging equipment
• High-speed data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65LVDS18DRFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
