SN65LVELT23DGKR TI Level Translator | 8-VSSOP | 3.3V/5V, 1.5Gbps

Product Overview

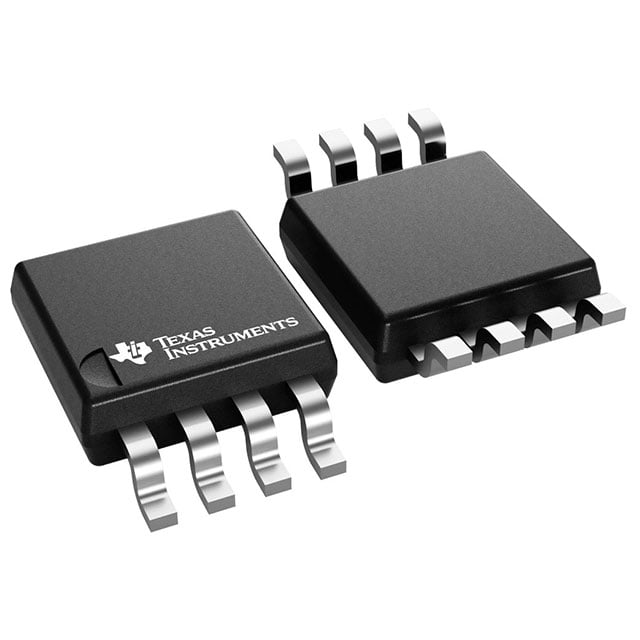

The SN65LVELT23DGKR is a high-speed differential-to-LVTTL/LVCMOS translator from Texas Instruments, designed for applications requiring signal conversion between LVPECL and LVTTL/LVCMOS logic levels. Housed in a compact 8-VSSOP package, this device supports data rates up to 1.5 Gbps and operates from a single 3.3V or 5V supply. It features a differential input with a typical threshold of 50 mV and provides a single-ended LVTTL/LVCMOS output capable of driving 50 Ω loads. The SN65LVELT23DGKR is ideal for clock distribution, data communication, and signal conditioning in high-speed systems.

Detailed Technical Specifications

Key Features

• Single 3.3V or 5V supply operation
• Differential LVPECL input to LVTTL/LVCMOS output translation
• High-speed: up to 1.5 Gbps
• Low propagation delay: 1.5 ns typical
• Low output skew: 50 ps typical
• Compact 8-VSSOP package for space-constrained designs
• Industrial temperature range: -40°C to +85°C

Target Applications

• 5G base station clock distribution
• Automotive dashboard display interfaces
• High-speed data acquisition systems
• Network routers and switches
• Test and measurement equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65LVELT23DGKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
