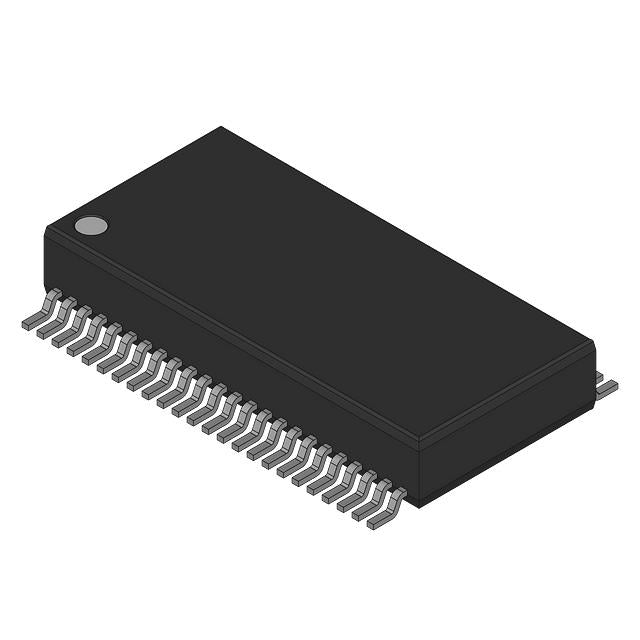

SN74ABT162260DLR TI Bus Switch | 20-bit | 3.3V, 5V Tolerant

Product Overview

The SN74ABT162260DLR from Texas Instruments is a 20-bit bus switch with dual-port configuration, designed for high-speed data routing and isolation in digital systems. It operates with a 3.3V supply while being 5V tolerant on I/O pins, making it suitable for mixed-voltage environments. The device features low on-state resistance (5 Ω typical) and minimal propagation delay (0.25 ns typical), enabling high-bandwidth signal switching without significant signal degradation. Packaged in a 56-pin SSOP (DL) package, it supports hot insertion and offers flow-through pinout for easy PCB layout.

Detailed Technical Specifications

Key Features

• Low on-state resistance (5 Ω) for minimal signal attenuation
• Fast switching speed with 0.25 ns propagation delay
• 5V tolerant I/O for mixed-voltage system compatibility
• Hot insertion support with power-up 3-state
• Flow-through pinout simplifies PCB routing
• Low power consumption (ICC = 3 mA typical)

Target Applications

The SN74ABT162260DLR is ideal for bus isolation and switching in various systems. Specific applications include: 5G base station backplane routing, automotive dashboard display interfaces, industrial PLC I/O modules, network routers and switches, and server motherboard bus isolation. Its high bandwidth and low delay make it suitable for high-speed data paths in telecom and computing equipment.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT162260DLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
