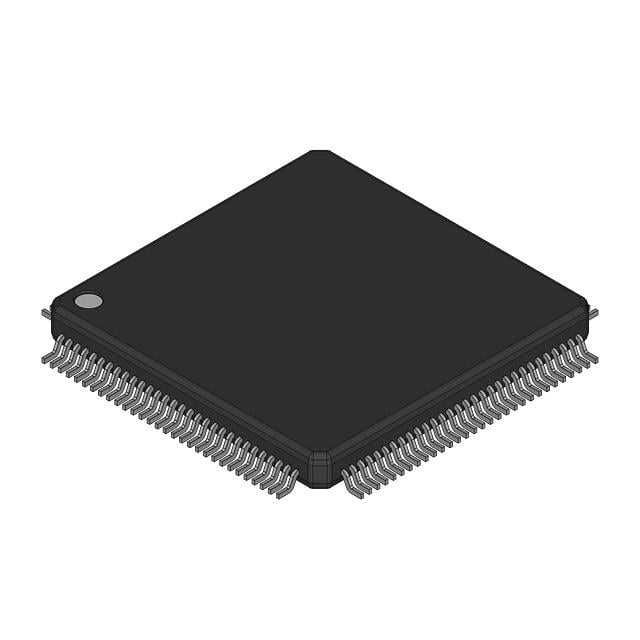

SN74ABT3613-15PCB TI FIFO Memory | 120-HLQFP (14x14) | 512x36, 15ns

Product Overview

The SN74ABT3613-15PCB is a high-performance 512 x 36-bit synchronous FIFO memory from Texas Instruments, designed for high-speed data buffering and clock domain crossing. It operates with a 15 ns access time and is housed in a 120-pin HLQFP package (14x14 mm). This device features independent read and write clocks, allowing seamless data transfer between asynchronous systems. It supports 3.3V operation with 5V-tolerant inputs, making it suitable for mixed-voltage environments.

Detailed Technical Specifications

Key Features

• 512 x 36-bit synchronous FIFO with 15 ns access time
• Independent read and write clocks for asynchronous operation
• Programmable almost-empty and almost-full flags
• Retransmit capability for error recovery
• 3.3V core supply with 5V-tolerant I/O
• Low power consumption (typical 100 mW)
• Industrial temperature range (-40°C to +85°C)
• 120-pin HLQFP package (14x14 mm) for compact designs

Target Applications

• 5G base station data buffering (e.g., in FPGA-based beamforming modules)
• Automotive dashboard display controllers (e.g., for high-speed video data)
• Network routers and switches (e.g., packet buffering in line cards)
• Industrial automation (e.g., high-speed data acquisition systems)
• Medical imaging (e.g., ultrasound signal processing)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT3613-15PCB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ABT3613-15PCB 是德州儀器推出的一款高性能 512 x 36 位同步 FIFO 存儲器，專為高速數據緩衝和時鐘域交叉設計。其存取時間為 15 ns，採用 120 引腳 HLQFP 封裝（14x14 mm）。該器件具有獨立的讀寫時鐘，支持異步系統間的無縫數據傳輸。支持 3.3V 工作電壓，輸入可承受 5V 電平，適用於混合電壓環境。

詳細技術參數

核心特性

• 512 x 36 位同步 FIFO，存取時間 15 ns
• 獨立讀寫時鐘，支持異步操作
• 可編程幾乎空和幾乎滿標誌
• 重傳功能，用於錯誤恢復
• 3.3V 核心電源，I/O 可承受 5V
• 低功耗（典型 100 mW）
• 工業溫度範圍（-40°C 至 +85°C）
• 120 引腳 HLQFP 封裝（14x14 mm），節省空間

典型應用場景

• 5G 基站數據緩衝（例如 FPGA 波束成形模塊）
• 汽車儀表盤顯示控制器（例如高速視頻數據）
• 網絡路由器和交換機（例如線卡中的數據包緩衝）
• 工業自動化（例如高速數據採集系統）
• 醫療成像（例如超聲信號處理）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ABT3613-15PCB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
