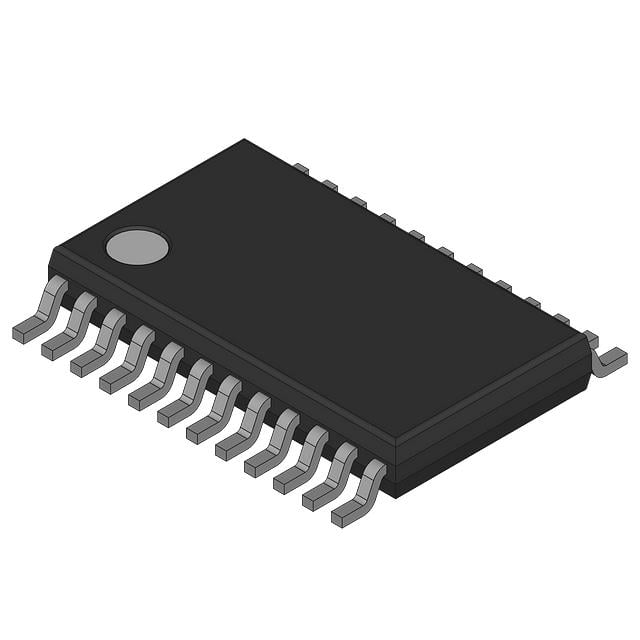

SN74ABT543APWLE TI Bus Transceiver | 8-bit | Non-Inverting, 3-State

Product Overview

The SN74ABT543APWLE is an advanced 8-bit registered transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. It features non-inverting outputs and 3-state outputs for bus-oriented applications. The device is part of the ABT family, offering high speed and low power consumption. It operates from a 4.5V to 5.5V supply and is characterized for operation from -40°C to +85°C. The SN74ABT543APWLE is ideal for driving heavily loaded backplanes and memory interfaces.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional registered transceiver
• Non-inverting outputs
• 3-state outputs for bus isolation
• High drive capability: -32 mA / 64 mA
• Low propagation delay: 4.1 ns typical
• ESD protection exceeds 2000 V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 500 mA per JESD 17
• Package options: TSSOP-24 (PW), SOIC-24 (DW)

Target Applications

• 5G base station control boards
• Automotive dashboard display interfaces
• Industrial PLC backplane communication
• Memory address/data bus buffering
• Telecommunications switching equipment
• Server and storage system bus isolation
