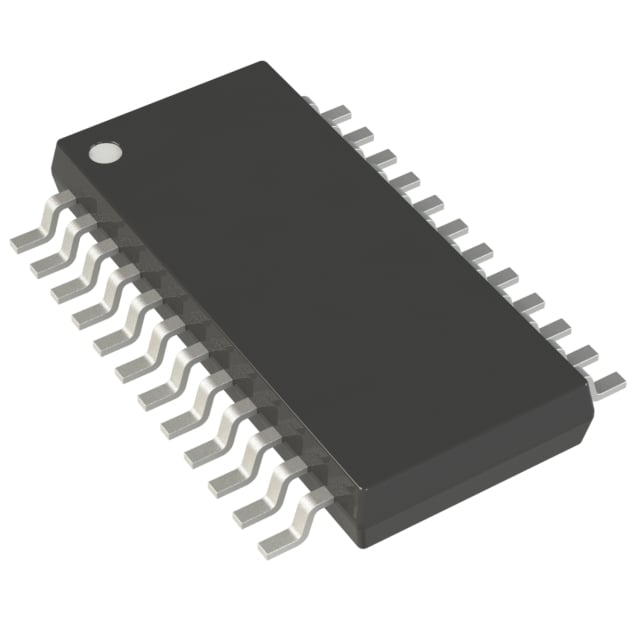

SN74ABT652DBR TI Bus Transceiver | 24-SSOP | 8-Bit, Non-Inverting, 3-State

Product Overview

The SN74ABT652DBR from Texas Instruments is a high-performance 8-bit bus transceiver with non-inverting 3-state outputs, designed for bidirectional asynchronous communication between two data buses. Housed in a compact 24-SSOP package, this device integrates D-type flip-flops for temporary data storage and features two separate enable controls for direction and output state. It operates over a wide voltage range of 4.5V to 5.5V, making it suitable for 5V logic systems. With typical propagation delays of 4.6 ns and output drive capability of ±32 mA, it ensures high-speed data transfer in demanding applications.

Detailed Technical Specifications

Key Features

• Bi-directional bus transceiver with storage
• Non-inverting outputs
• 3-state outputs for bus isolation
• High drive capability: ±32 mA
• Low propagation delay: 4.6 ns typical
• Wide operating temperature range: -40°C to +85°C
• ESD protection exceeds 2000V per MIL-STD-883
• Latch-up performance exceeds 500 mA per JESD 17

Target Applications

The SN74ABT652DBR is ideal for high-speed data communication in systems such as 5G base stations (e.g., remote radio units), industrial automation controllers (e.g., PLCs), automotive infotainment dashboards, and networking equipment (e.g., routers and switches). It is also used in memory interfacing and data acquisition systems where bidirectional bus isolation and temporary storage are required.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT652DBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
