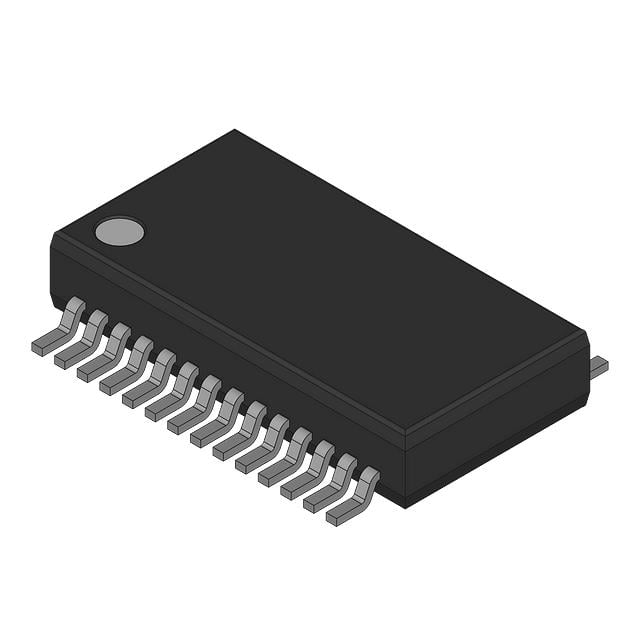

SN74ABT8652DL TI Bus Transceiver | 28-BSSOP | 3-State, Dual Supply

Product Overview

The SN74ABT8652DL is a 16-bit universal bus transceiver from Texas Instruments, designed for asynchronous communication between two data buses. It features dual supply pins (VCCA and VCCB) for voltage level translation, making it ideal for mixed-voltage systems. The device operates with 3-state outputs and supports bidirectional data flow with direction control (DIR) and output enable (OE) inputs. Packaged in a 28-pin BSSOP (SSOP) package, it offers a compact solution for high-speed data transfer in industrial and telecom applications.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with dual supply voltage translation
• 3-state outputs for bus isolation
• High drive capability: -24 mA / 24 mA
• Low propagation delay: 4.5 ns typical
• ESD protection exceeds 2000 V per MIL-STD-883
• Latch-up performance exceeds 500 mA per JESD 17

Target Applications

• 5G base station control boards for level translation between 5V and 3.3V logic
• Automotive dashboard display modules interfacing with MCU
• Industrial PLC I/O modules for signal buffering
• Telecom line cards for data bus isolation
• FPGA configuration interfaces requiring voltage translation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT8652DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
