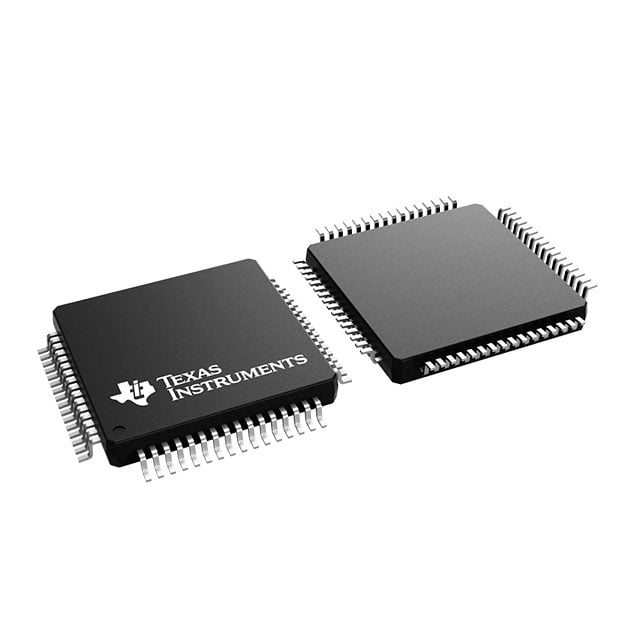

SN74ABTH18652APM TI Bus Transceiver | 64-LQFP (10x10) | 3-State, 19-Bit

Product Overview

The SN74ABTH18652APM is a high-performance 19-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. Housed in a compact 64-LQFP (10x10 mm) package, this device features 3-state outputs and operates with a supply voltage range of 4.5V to 5.5V. It is part of the ABT (Advanced BiCMOS Technology) family, offering low power consumption and high drive capability. The device is ideal for applications requiring high-speed data transfer and signal buffering in complex digital systems.

Detailed Technical Specifications

Key Features

• 19-bit bidirectional bus transceiver with 3-state outputs
• High drive capability: ±64 mA at 5V
• Low propagation delay: 4.1 ns typical
• Power-up 3-state to prevent bus contention during power sequencing
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Supports live insertion and withdrawal

Target Applications

• 5G base station control boards for data bus isolation
• Automotive dashboard display systems (e.g., infotainment clusters)
• Industrial PLC (Programmable Logic Controller) backplane communication
• Telecommunications switching equipment (e.g., routers, switches)
• Medical imaging systems (e.g., MRI control units)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABTH18652APM. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
