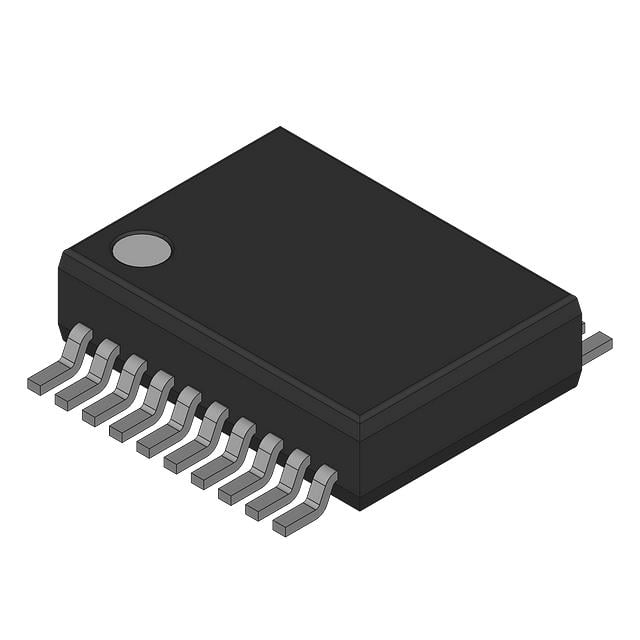

SN74ACT563DBLE TI Latches | Octal D-Type | 3-State, 5V

Product Overview

The SN74ACT563DBLE from Texas Instruments is an octal D-type transparent latch with 3-state outputs. It operates at a supply voltage of 5V and features non-inverting outputs. The device is designed for high-speed, low-power applications and is ideal for bus-oriented systems. The latch is transparent when the latch enable (LE) input is high, and the outputs follow the data inputs. When LE is low, the outputs are latched. The output enable (OE) input controls the 3-state outputs, allowing connection to a common bus.

Detailed Technical Specifications

Key Features

• Octal D-type transparent latch with 3-state outputs
• Non-inverting outputs
• High-speed operation: typical propagation delay 10ns
• Low power consumption: ICC 80μA (max)
• Inputs accept voltages up to 5.5V
• Outputs can drive up to 24mA
• Bus-hold circuitry eliminates need for external pull-up resistors
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015

Target Applications

• 5G base station control logic
• Automotive dashboard display interfaces
• Industrial automation PLC modules
• Data communication routers and switches
• Memory address latching in embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT563DBLE. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
