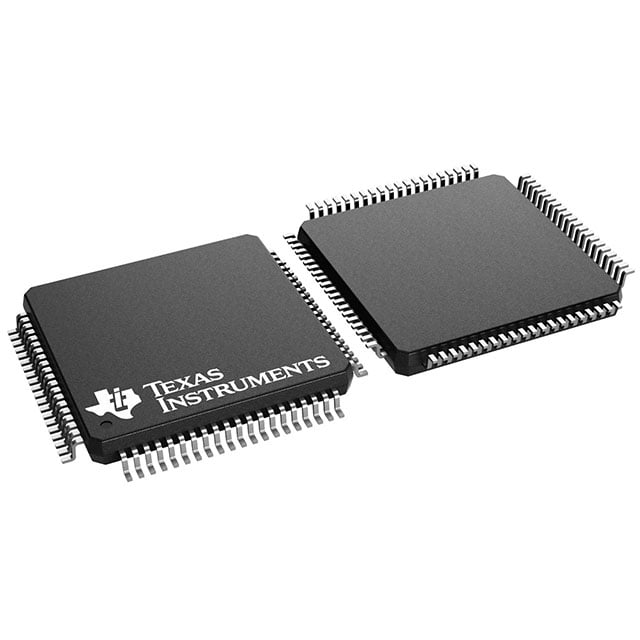

SN74ACT7802-60PN TI FIFO Memory | 80-LQFP (12x12) | 60MHz, 512x9

Product Overview

The SN74ACT7802-60PN is a high-performance 512 x 9 FIFO (First-In, First-Out) memory device from Texas Instruments, designed for reliable data buffering in high-speed digital systems. Operating at a clock frequency of up to 60 MHz, it provides a storage capacity of 512 words of 9 bits each. The device is housed in an 80-pin LQFP package with a 12x12 mm footprint, making it suitable for space-constrained applications. It features asynchronous read and write operations, with separate read and write clocks for flexible system integration. The SN74ACT7802-60PN is ideal for applications requiring temporary data storage, rate matching, or data flow control.

Detailed Technical Specifications

Key Features

• High-speed 60 MHz operation for demanding data rates
• 512 x 9-bit storage capacity for efficient data buffering
• Asynchronous read and write clocks for flexible timing
• Programmable flags: Full, Empty, Half-Full, Almost-Full/Empty
• Low power consumption with CMOS technology
• Compact 80-pin LQFP package (12x12 mm) for space-saving designs
• Wide operating temperature range (-40°C to +85°C)
• Industry-standard pinout for easy replacement

Target Applications

• 5G base station data buffering and rate matching
• Automotive dashboard display controllers
• Industrial automation PLCs and data loggers
• Telecommunications network switches and routers
• Medical imaging systems (e.g., ultrasound, MRI)
• High-speed data acquisition systems
• Video processing and frame buffering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT7802-60PN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
