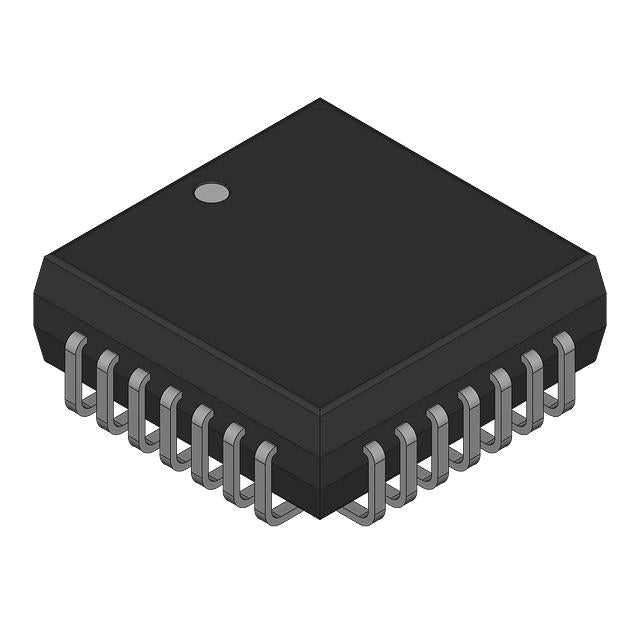

SN74ACT8994FN TI Test Bus Controller | | 18-bit, IEEE Std 1149.1

Product Overview

The SN74ACT8994FN from Texas Instruments is a dedicated test bus controller designed to support IEEE Std 1149.1 (JTAG) boundary-scan testing. It provides a complete interface between a host processor and a target system's test access port (TAP), enabling efficient testing of complex digital circuits. The device operates with a 5V supply and features an 18-bit parallel interface for high-speed data transfer.

Detailed Technical Specifications

Key Features

• Compliant with IEEE Std 1149.1-1990 and 1149.1a-1993
• 18-bit parallel data bus for fast command and data transfer
• Supports all mandatory and optional JTAG instructions
• Programmable TAP controller states
• Built-in self-test (BIST) capability
• Low power consumption with 5V operation

Target Applications

• 5G base station control boards for boundary-scan testing of FPGAs and ASICs
• Automotive dashboard electronics for JTAG-based diagnostics
• Industrial PLC systems for in-system programming and test
• Telecommunications switches for board-level testing
• Medical imaging equipment for reliable JTAG chain management

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ACT8994FN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
