SN74AHC132DGVR TI Logic Gates | 14-TVSOP | 4-ch, 2-Input NAND, Schmitt-Trigger

Product Overview

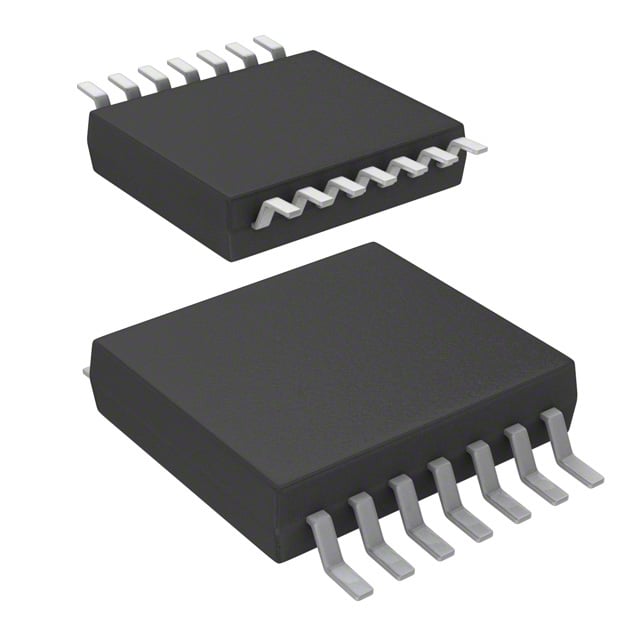

The SN74AHC132DGVR from Texas Instruments is a quadruple 2-input positive-NAND gate with Schmitt-trigger inputs. It is designed for 2-V to 5.5-V VCC operation, making it ideal for a wide range of digital logic applications. The device features hysteresis for improved noise margin and can be used in systems requiring high noise immunity. Housed in a 14-TVSOP package, it offers a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• Schmitt-trigger inputs with hysteresis for noise rejection
• Wide operating voltage range: 2 V to 5.5 V
• High noise immunity: VNIH = 0.28 × VCC, VNIL = 0.12 × VCC
• Low power consumption: ICC max = 10 µA at 5.5 V
• High drive capability: ±8 mA at 5 V
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 100 mA per JESD 78, Class II

Target Applications

The SN74AHC132DGVR is suitable for various applications requiring robust logic gates with Schmitt-trigger inputs. Specific examples include:

• 5G base station control logic for signal conditioning
• Automotive dashboard display interfaces for noise filtering
• Industrial sensor signal debouncing and conditioning
• Portable battery-powered devices requiring low power
• Server and networking equipment for clock and data line filtering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHC132DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
