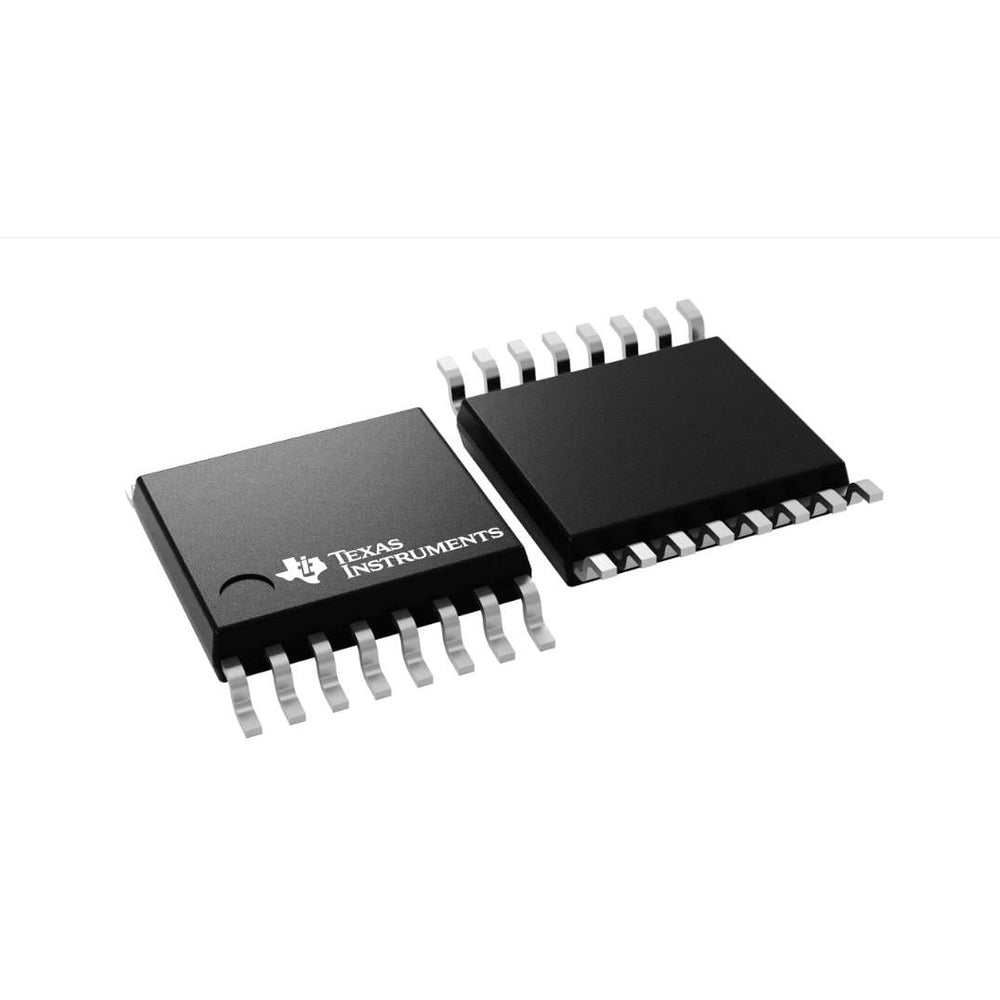

SN74AHC158DGVR TI Multiplexer | 16-TVSOP | 2V-5.5V, 4-Channel, 2-Input

Product Overview

The SN74AHC158DGVR is a high-speed CMOS quad 2-input multiplexer from Texas Instruments. It selects one of two 4-bit data sources based on the state of the select input (S). The device features a common output enable (OE) input that, when high, forces all outputs to a high-impedance state. Operating from 2V to 5.5V, it is ideal for battery-powered and portable applications. The 16-TVSOP package offers a compact footprint for space-constrained designs.

Detailed Technical Specifications

Key Features

• Quad 2-input multiplexer with common select and enable
• Wide operating voltage range: 2V to 5.5V
• High speed: tpd = 7.5 ns typical at 5V
• Low power consumption: ICC = 4 µA (max)
• High-impedance outputs when OE is high
• Inputs accept voltages up to 5.5V
• ESD protection exceeds 2000V (HBM)
• Available in space-saving 16-TVSOP package

Target Applications

• Data routing in 5G base stations (e.g., signal selection in remote radio units)
• Automotive infotainment systems (e.g., dashboard display source selection)
• Industrial control systems (e.g., sensor data multiplexing)
• Portable medical devices (e.g., patient monitoring signal routing)
• Consumer electronics (e.g., smartphone accessory detection)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHC158DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
