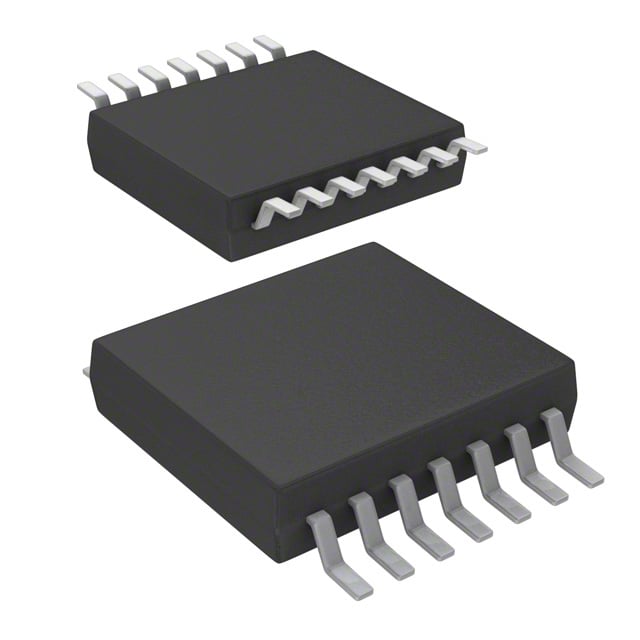

SN74AHCT00DGVR TI Logic Gate | 14-TVSOP | Quad 2-Input NAND, 4.5V-5.5V

Product Overview

The SN74AHCT00DGVR is a high-speed quad 2-input NAND gate from Texas Instruments, fabricated using advanced silicon-gate CMOS technology. It operates over a wide supply voltage range of 4.5V to 5.5V, making it ideal for 5V logic systems. The device features balanced propagation delays and high noise immunity, ensuring reliable performance in demanding applications. Housed in a compact 14-TVSOP package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Quad 2-input NAND gate logic function
• Wide supply voltage range: 4.5V to 5.5V
• High noise immunity: typical VOH = 4.9V at 5V
• Low power consumption: ICC = 1µA (max)
• Balanced propagation delays: tPLH ≈ tPHL
• Inputs are overvoltage tolerant up to 5.5V
• ESD protection exceeds 2000V (HBM)
• Available in lead-free and RoHS-compliant package

Target Applications

The SN74AHCT00DGVR is widely used in various electronic systems, including:

• 5G base station control logic
• Automotive dashboard displays and infotainment systems
• Industrial automation controllers
• Consumer electronics like smart home hubs
• Data communication equipment
• Medical devices requiring reliable logic operations

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHCT00DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
