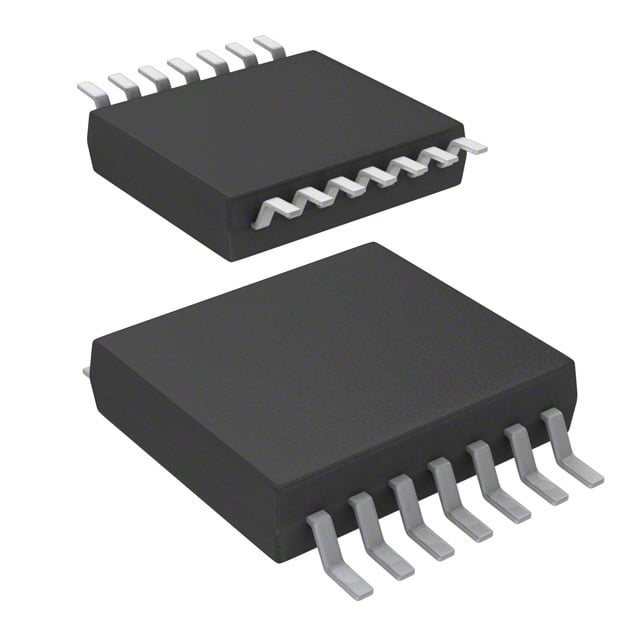

SN74AHCT02DGVR TI Logic Gates | 14-TVSOP | 4.5V-5.5V, 4-ch, 2-input NOR

Product Overview

The SN74AHCT02DGVR is a high-performance CMOS logic device from Texas Instruments, featuring four independent 2-input NOR gates. It operates over a supply voltage range of 4.5V to 5.5V, making it ideal for 5V systems. The device is housed in a compact 14-TVSOP package, offering space-saving benefits for modern electronic designs. With typical propagation delays of 7.5 ns and low power consumption, it is suitable for high-speed and power-sensitive applications.

Detailed Technical Specifications

Key Features

• 4 independent 2-input NOR gates
• Wide supply voltage range: 4.5V to 5.5V
• High speed: tpd = 7.5 ns typical at 5V
• Low power consumption: ICC = 1 µA max
• Inputs are TTL-voltage compatible
• Outputs drive up to 8 LSTTL loads
• ESD protection exceeds 2000V per MIL-STD-883, Method 3015
• Available in space-saving TVSOP package

Target Applications

• 5G base station control logic
• Automotive dashboard display controllers
• Industrial PLC (Programmable Logic Controller) I/O modules
• Consumer electronics: smart home hubs, gaming consoles
• Medical devices: patient monitoring systems
• Data communication equipment: routers, switches

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHCT02DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
