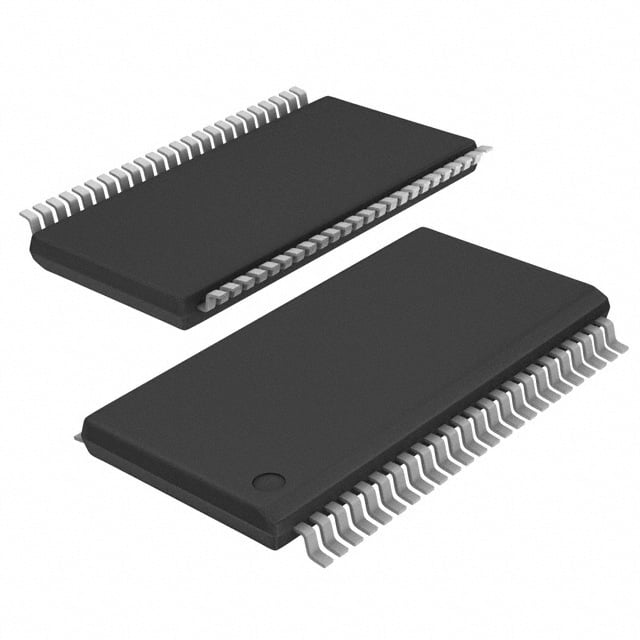

SN74AHCT16541DGVR TI Buffer/Driver | 48-TVSOP | 5V, 16-bit

Product Overview

The SN74AHCT16541DGVR is a 16-bit buffer/driver from Texas Instruments, designed with dual 8-bit non-inverting outputs. It operates at a supply voltage range of 4.5V to 5.5V, making it ideal for 5V systems. Housed in a compact 48-TVSOP package, this device offers high drive capability (up to 8 mA at VCC = 5V) and is compatible with TTL input levels. The SN74AHCT16541DGVR is part of the AHCT family, which provides advanced high-speed CMOS technology with low power consumption.

Detailed Technical Specifications

Key Features

• 16-bit buffer/driver with dual 8-bit non-inverting outputs
• Operates from 4.5V to 5.5V
• TTL input compatible
• High drive capability: ±8 mA at 5V
• Low power consumption: ICC = 4 µA (max)
• Propagation delay: 6.5 ns (max) at 5V, 50 pF
• ESD protection: 2 kV HBM, 1 kV CDM
• Package: 48-TVSOP (Green, RoHS compliant)

Target Applications

• 5G base station control logic
• Automotive dashboard display drivers
• Industrial automation PLC I/O modules
• Data communication routers and switches
• Medical imaging equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AHCT16541DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AHCT16541DGVR 是德州儀器（TI）推出的16位緩衝器/驅動器，具有雙8位同相輸出。工作電源電壓範圍為4.5V至5.5V，非常適合5V系統。採用緊湊的48-TVSOP封裝，該器件提供高驅動能力（VCC=5V時高達8 mA），並兼容TTL輸入電平。SN74AHCT16541DGVR 屬於AHCT系列，採用先進的高速CMOS技術，功耗低。

詳細技術參數

核心特性

• 16位緩衝器/驅動器，雙8位同相輸出
• 工作電壓 4.5V 至 5.5V
• 兼容TTL輸入
• 高驅動能力：±8 mA (5V)
• 低功耗：ICC = 4 µA (最大值)
• 傳播延遲：6.5 ns (最大值) 在 5V, 50 pF
• ESD保護：2 kV HBM, 1 kV CDM
• 封裝：48-TVSOP (綠色，符合RoHS)

典型應用場景

• 5G基站控制邏輯
• 汽車儀表板顯示驅動
• 工業自動化PLC I/O模塊
• 數據通信路由器和交換機
• 醫療影像設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AHCT16541DGVR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
