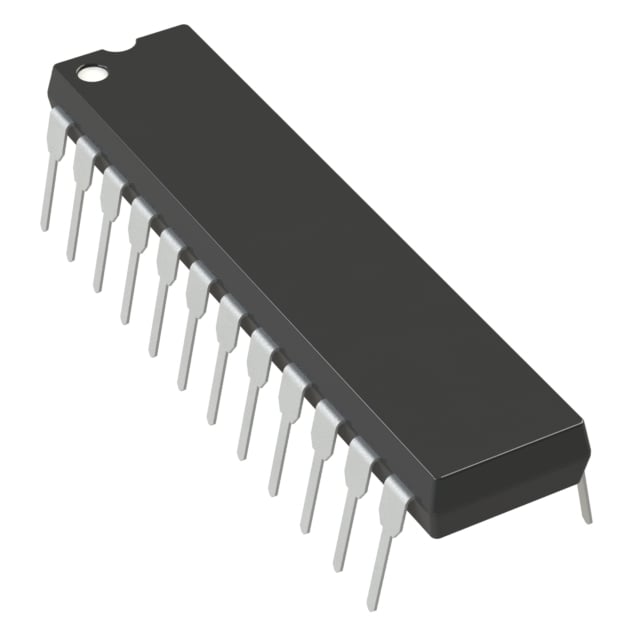

SN74ALS29854NT TI Logic IC | 24-PDIP | 8-Bit, 3-State

Product Overview

The SN74ALS29854NT from Texas Instruments is a high-performance 8-bit universal shift/storage register with 3-state outputs. It is designed for use in advanced low-power Schottky (ALS) systems, offering a balance of speed and power efficiency. The device operates from a single 5V supply and is housed in a 24-pin PDIP package, making it suitable for through-hole PCB assembly. It features parallel inputs and outputs, as well as serial input and output for cascading in shift register applications. The 3-state outputs allow for connection to a common data bus without contention.

Detailed Technical Specifications

Key Features

• 8-bit universal shift/storage register with parallel and serial I/O
• 3-state outputs for bus-oriented applications
• Advanced Low-Power Schottky (ALS) technology for high speed and low power
• Direct clear input for asynchronous reset
• Edge-triggered clock with positive-edge operation
• Wide operating voltage range: 4.5V to 5.5V
• Industry-standard 24-pin PDIP package

Target Applications

The SN74ALS29854NT is ideal for use in digital systems requiring data storage, shifting, or bus interfacing. Specific applications include:

• 5G base station control logic for data routing and buffering
• Automotive dashboard display controllers for segment driving
• Industrial programmable logic controllers (PLCs) for I/O expansion
• Telecommunications equipment for serial-to-parallel conversion
• Test and measurement instruments for pattern generation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALS29854NT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
