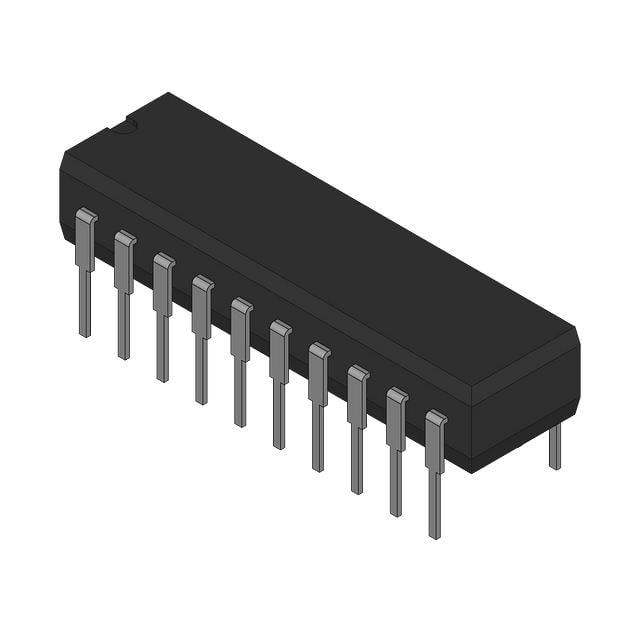

SN74ALS580BNS TI Flip-Flop | 8-bit D-type | Non-Inverting, 3-State Output

Product Overview

The SN74ALS580BNS is an 8-bit D-type flip-flop with 3-state outputs from Texas Instruments. It features a buffered common clock (CLK) and an output enable (OE) input. The device stores data on the low-to-high transition of the clock. When OE is low, the outputs are enabled; when OE is high, the outputs are in the high-impedance state. This device is designed for use in bus-oriented systems where data retention and high drive capability are required.

Detailed Technical Specifications

Key Features

• 8-bit D-type flip-flop with 3-state outputs
• Buffered common clock and output enable
• High drive capability: 24 mA sink, 15 mA source
• Low power consumption
• Wide operating voltage range: 4.5V to 5.5V
• Edge-triggered: data stored on low-to-high clock transition

Target Applications

• Bus interface in 5G base stations (e.g., data buffering in control boards)
• Automotive dashboard displays (e.g., data latching for segment drivers)
• Industrial PLCs (e.g., output register for actuator control)
• Telecommunications equipment (e.g., register for line card status)
• Memory address latching in embedded systems
