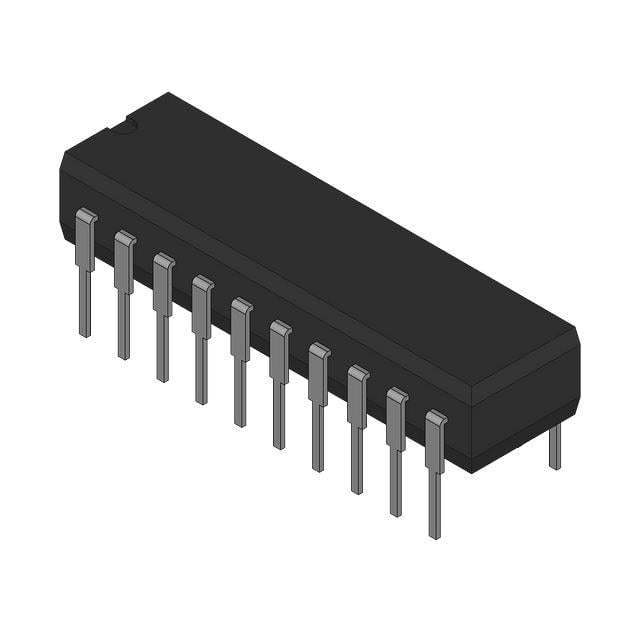

SN74ALS623AN3 TI Bus Transceiver | 20-PDIP | 8-Bit, Non-Inverting, 3-State

Product Overview

The SN74ALS623AN3 is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between two data buses. It features non-inverting outputs and 3-state outputs for bus-oriented applications. Housed in a 20-pin PDIP package, this device operates from a single 5V supply and is compatible with TTL logic levels. The SN74ALS623AN3 is part of the advanced low-power Schottky (ALS) family, offering a balance of speed and power consumption.

Detailed Technical Specifications

Key Features

• Bidirectional bus transceiver with 8-bit width
• Non-inverting data paths
• 3-state outputs for bus isolation
• Low power consumption (typical 50 mW)
• High speed: propagation delay typically 8 ns
• Inputs and outputs are TTL-compatible
• Package: 20-pin PDIP for easy prototyping

Target Applications

• Data communication between microprocessors and peripherals in 5G base stations
• Bus interface in automotive dashboard systems
• Industrial control systems for signal buffering
• Memory address and data bus driving
• General-purpose logic level translation
