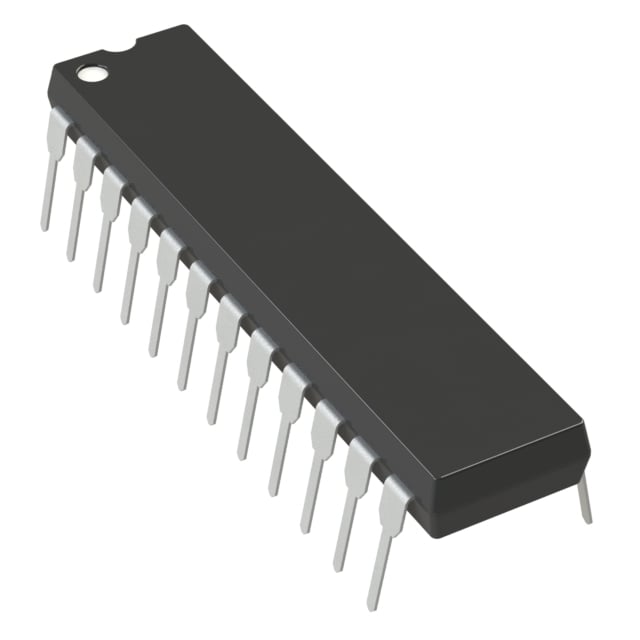

SN74ALS869NT TI Counter/Divider | 24-PDIP | 8-Bit, Synchronous, Binary

Product Overview

The SN74ALS869NT is a high-performance 8-bit synchronous binary counter/divider from Texas Instruments, designed for use in a wide range of digital systems. It features a 24-pin PDIP package and operates with a typical supply voltage of 5V. The device offers synchronous counting with a maximum clock frequency of 30 MHz, making it suitable for high-speed applications. Its asynchronous master reset and parallel load capabilities provide flexibility in system design.

Detailed Technical Specifications

Key Features

• 8-bit synchronous binary counter/divider
• High-speed operation: 30 MHz maximum clock frequency
• Low power consumption: 20 mW typical
• Asynchronous master reset for immediate clearing
• Parallel load capability for presetting count value
• Outputs can drive up to 10 LSTTL loads
• Wide operating voltage range: 4.5V to 5.5V
• Industry-standard 24-pin PDIP package

Target Applications

The SN74ALS869NT is ideal for use in digital counters, frequency dividers, and timing circuits. Specific applications include:

• 5G base station timing and synchronization modules
• Automotive dashboard display controllers
• Industrial programmable logic controllers (PLCs)
• Test and measurement equipment (e.g., frequency counters)
• Consumer electronics (e.g., digital clocks, timers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALS869NT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
