SN74ALVC16245DGGR TI Bus Transceiver | 16-bit | 1.65V-3.6V, 24mA Drive

Product Overview

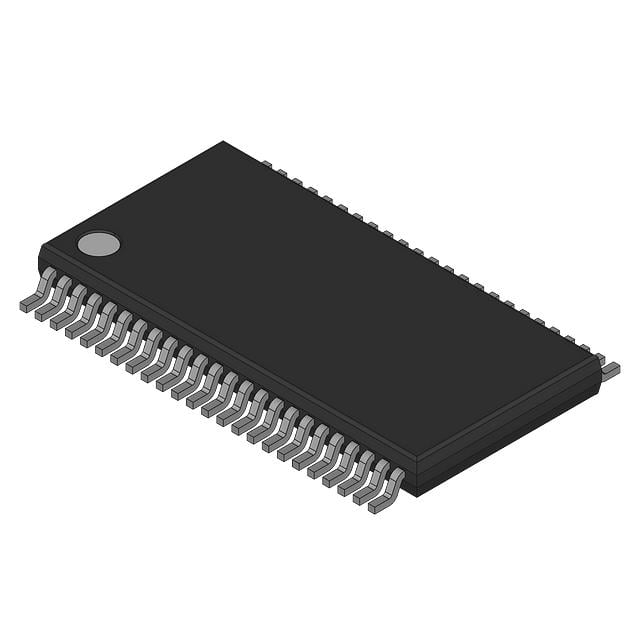

The SN74ALVC16245DGGR is a 16-bit (dual 8-bit) non-inverting bus transceiver from Texas Instruments, designed for asynchronous communication between two data buses. It operates from 1.65V to 3.6V, making it ideal for low-voltage applications. The device features 24mA output drive at 3.3V and is available in a TSSOP-48 package. It supports partial power-down (Ioff) and bus hold on data inputs, eliminating the need for external pull-up resistors.

Detailed Technical Specifications

Key Features

• 16-bit bus transceiver with dual 8-bit channels
• Wide operating voltage range: 1.65V to 3.6V
• High drive: ±24mA at 3.3V
• Partial power-down (Ioff) supports live insertion
• Bus hold on data inputs eliminates pull-up resistors
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100mA per JESD 78

Target Applications

• 5G base station control boards (e.g., data bus isolation between FPGA and processor)
• Automotive dashboard display modules (e.g., communication between MCU and display driver)
• Industrial PLC I/O modules (e.g., signal level translation between 1.8V and 3.3V domains)
• Networking equipment (e.g., router backplane data transfer)
• Portable electronics (e.g., smartphone peripheral interface)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVC16245DGGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
