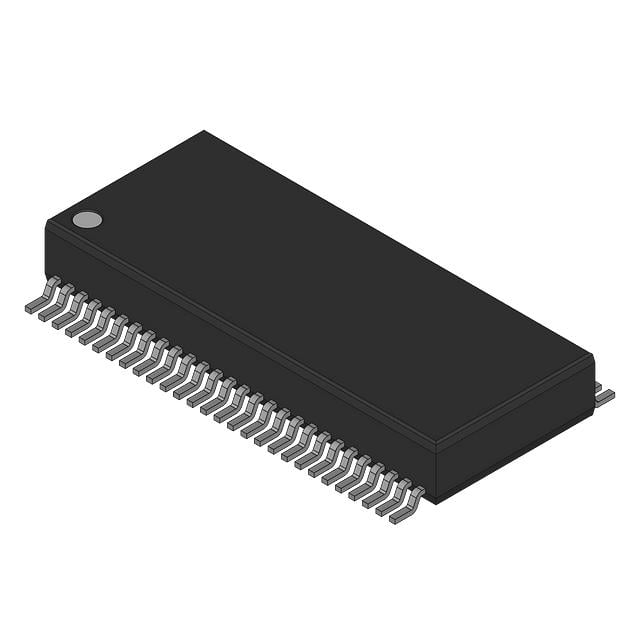

SN74ALVCHR162269DL TI Bus Switch | 24-bit, 2.3-3.6V, 4.5ns

Product Overview

The SN74ALVCHR162269DL is a 24-bit universal bus driver from Texas Instruments, designed for 2.3-V to 3.6-V VCC operation. It features 3-state outputs and can be used as two 12-bit bus drivers or one 24-bit bus driver. The device supports partial power-down (Ioff) and is latch-up performance exceeds 100 mA per JESD 78, Class II.

Detailed Technical Specifications

Key Features

• 24-bit bus driver with 3-state outputs
• Supports mixed-mode voltage operation (5-V input tolerance)
• Ioff supports partial-power-down mode
• Bus hold on data inputs eliminates need for external pull-up/pull-down resistors
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)

Target Applications

• 5G base station control logic
• Automotive dashboard display interface
• Industrial PLC backplane bus
• Network switch data path
• Memory address buffering in servers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ALVCHR162269DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
