SN74AUP1G02DRYR TI Single 2-Input NOR Gate | 6-SON (1.45x1) | 0.8V-3.6V, 4mA

Product Overview

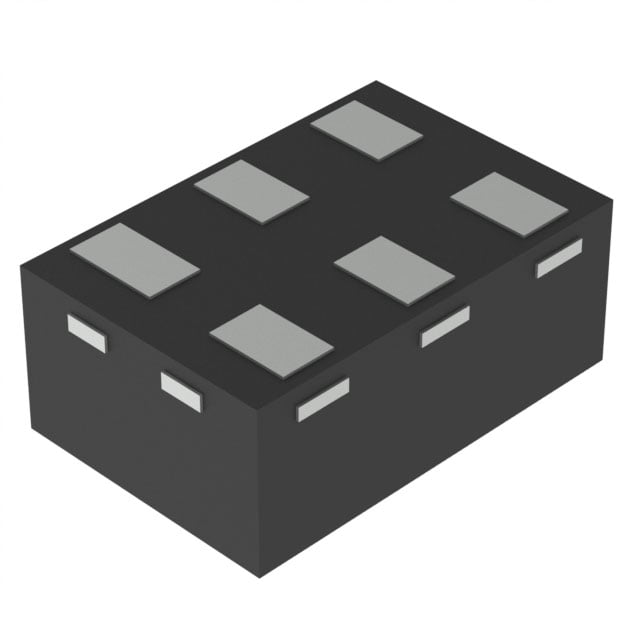

The SN74AUP1G02DRYR is a single 2-input positive-NOR gate from Texas Instruments' advanced ultra-low-power (AUP) family. It operates from 0.8 V to 3.6 V, making it ideal for battery-powered and portable applications. The device is available in a compact 6-pin SON package (1.45 mm × 1.0 mm) with a 0.5-mm pitch, saving board space. It features low static power consumption (0.9 μA max) and high drive capability (±4 mA at 3.3 V). The SN74AUP1G02DRYR is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs when VCC is 0 V, preventing damaging backflow current.

Detailed Technical Specifications

Key Features

• Ultra-low static power consumption: 0.9 μA max
• Wide operating voltage range: 0.8 V to 3.6 V
• High drive strength: ±4 mA at 3.3 V
• Ioff partial-power-down mode prevents backflow current
• Schmitt-trigger inputs for noise immunity
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Available in small 6-pin SON package (1.45 mm × 1.0 mm)

Target Applications

• 5G base station control logic: Used in power management and signal conditioning modules for baseband units.
• Automotive dashboard: Implements logic functions in infotainment and cluster systems, e.g., in Tesla Model 3 dashboard controller.
• Portable medical devices: Battery-powered patient monitors and glucose meters requiring low power.
• IoT edge nodes: Sensor hubs and wireless modules for smart home and industrial IoT.
• Wearable electronics: Smartwatches and fitness trackers where space and power are critical.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP1G02DRYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
