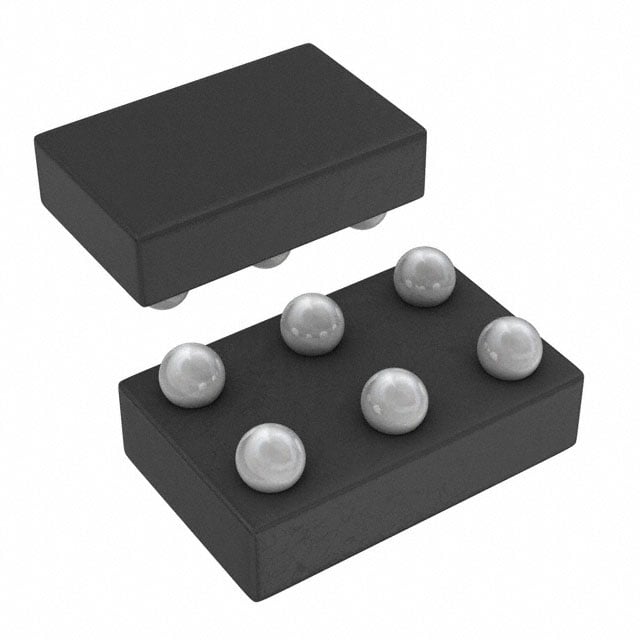

SN74AUP2G04YFPR TI Inverter | 6-DSBGA | 0.8V-3.6V, 4mA

QUOTE REQ
×

WECHAT SUPPORT

Direct Engineer Contact

WeChat QR

ID: Jasin_Semi

HK/SZ Authorized Supply

×

ENTERPRISE QQ

Fast Quotation

QQ QR

Official ID: 4008823823

×

TELEGRAM SUPPORT

Global & CIS Region Support

Telegram QR

@你的Telegram用户名

STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR STM32F103C8T6NE555PLM358DRESP32-WROOM-32TL431AIDBZRAMS1117-3.3LM7805MAX3232CSEPC817CTPS5430DDAR
1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3 1N40072N2222IRFZ44NFGA25N120S8050M7(1N4007)SS14TIP122AO3400IKW40N120H3
ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297 ATMEGA328P-AUESP8266-12ELM2596S-ADJBC547BIRLZ44NMCP2515-I/STSN65HVD230AD8232L293DTDA7297
产品描述
🧪 SAMPLE SUPPORT ✅ 100% Original & Traceable 🚀 Inquiry Today, Ship Today 🛡️ Escrow.com Secured Payment

Product Overview

The SN74AUP2G04YFPR is a dual inverter gate from Texas Instruments' advanced ultra-low-power (AUP) family. It operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for battery-powered and portable applications. The device is housed in a compact 6-pin DSBGA package (0.9mm x 1.4mm), saving board space. It features low static power consumption (0.9μA max) and high drive capability (4mA at 3.3V). The SN74AUP2G04YFPR is specified for operation from -40°C to +85°C.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 0.8V to 3.6V
Input Voltage (VI) 0V to 3.6V
Output Voltage (VO) 0V to VCC
High-Level Output Current (IOH) -4mA at 3.3V
Low-Level Output Current (IOL) 4mA at 3.3V
Propagation Delay (tpd) 3.8ns typ at 3.3V, 15pF
Input Capacitance (CI) 1.5pF typ
Power Dissipation (PD) 0.9μA max (static)
Operating Temperature -40°C to +85°C
Package 6-DSBGA (0.9mm x 1.4mm)

Key Features

  • Ultra-low power consumption: 0.9μA max static current
  • Wide supply voltage range: 0.8V to 3.6V
  • High drive capability: ±4mA at 3.3V
  • Low propagation delay: 3.8ns typ at 3.3V
  • Small package: 6-DSBGA (0.9mm x 1.4mm)
  • Input hysteresis for noise immunity
  • ESD protection: 2kV HBM, 1kV CDM

Target Applications

  • 5G base station control logic
  • Automotive dashboard displays
  • Portable medical devices (e.g., glucose monitors)
  • IoT sensor nodes
  • Smartphones and tablets
  • Wearable electronics

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP2G04YFPR. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUP2G04YFPR 是德州儀器先進超低功耗 (AUP) 系列的雙反相器閘極。它可在 0.8V 至 3.6V 的寬電源電壓範圍內工作,非常適合電池供電和便攜式應用。該器件採用緊湊的 6 引腳 DSBGA 封裝(0.9mm x 1.4mm),節省電路板空間。它具有低靜態功耗(最大 0.9μA)和高驅動能力(3.3V 時為 4mA)。SN74AUP2G04YFPR 的工作溫度範圍為 -40°C 至 +85°C。

詳細技術參數

參數 數值
電源電壓 (VCC) 0.8V 至 3.6V
輸入電壓 (VI) 0V 至 3.6V
輸出電壓 (VO) 0V 至 VCC
高電平輸出電流 (IOH) -4mA (3.3V)
低電平輸出電流 (IOL) 4mA (3.3V)
傳播延遲 (tpd) 典型 3.8ns (3.3V, 15pF)
輸入電容 (CI) 典型 1.5pF
功耗 (PD) 最大 0.9μA (靜態)
工作溫度 -40°C 至 +85°C
封裝 6-DSBGA (0.9mm x 1.4mm)

核心特性

  • 超低功耗:最大靜態電流 0.9μA
  • 寬電源電壓範圍:0.8V 至 3.6V
  • 高驅動能力:3.3V 時 ±4mA
  • 低傳播延遲:3.3V 時典型 3.8ns
  • 小型封裝:6-DSBGA (0.9mm x 1.4mm)
  • 輸入遲滯以增強抗噪性
  • ESD 保護:2kV HBM,1kV CDM

典型應用場景

  • 5G 基站控制邏輯
  • 汽車儀表板顯示
  • 便攜式醫療設備(如血糖儀)
  • 物聯網傳感器節點
  • 智能手機和平板電腦
  • 可穿戴電子設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip,我們為 SN74AUP2G04YFPR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括:

  • 全天候環球客戶支援:專業團隊為您提供即時報價及技術支援,無需漫長等待。
  • 現貨庫存,即日發貨:確保現貨充足。下午 4 點前確認訂單,即可安排當天寄出。
  • 深港聯動,結算靈活:深圳直發全球,物流高效可靠;支援香港銀行戶口轉賬及多幣種結算。
  • Escrow 擔保交易:支援 Escrow.com 平台交易,保障買賣雙方權益,小批量訂單亦可安心在線下單。
  • BOM 配單與樣板服務:提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨,具備完善的品質保證及產品可追溯性。

  • 100% 原廠正貨:承諾所有供應零件均為原裝現貨,品質嚴格把關,來源清晰可追溯。
  • 符合 RoHS 認證:所有電子元器件均符合國際環保標準及相關安全認證。
  • 原廠封裝保護:嚴格保留原廠原始包裝及封條,確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨,提供 BOM 配單及現貨庫存支援,歡迎查詢。
