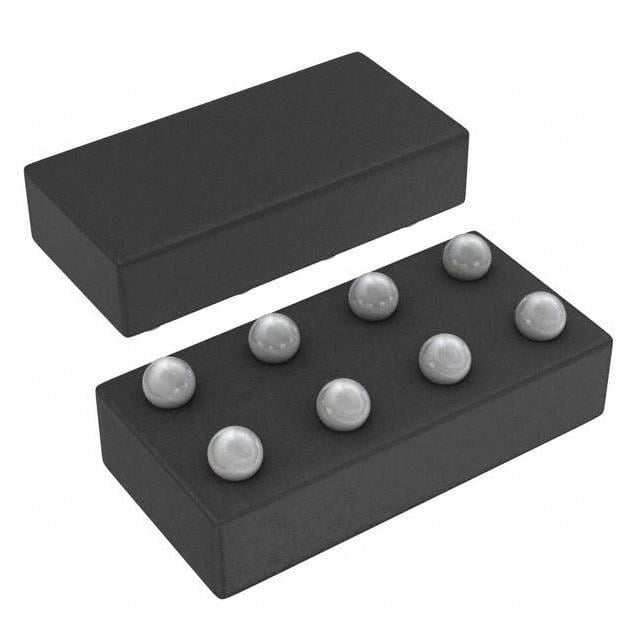

SN74AUP3G06YFPR TI Inverter | 8-DSBGA | 3-Ch, 0.8V-3.6V, 4mA

Product Overview

The SN74AUP3G06YFPR from Texas Instruments is a triple inverter gate with open-drain outputs, designed for ultra-low-power applications. Housed in a compact 8-DSBGA package, it operates over a wide supply voltage range of 0.8V to 3.6V, making it ideal for battery-powered and portable devices. The device features three independent inverter gates with open-drain outputs, allowing wired-AND configurations and level shifting. With a typical propagation delay of 2.9ns at 3.3V, it offers high-speed performance while consuming minimal quiescent current (0.9µA max). The SN74AUP3G06YFPR is part of TI's advanced AUP family, ensuring low static and dynamic power consumption.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 0.9µA max ICC
• Wide supply voltage range: 0.8V to 3.6V
• Open-drain outputs for wired-AND and level translation
• High speed: tpd 2.9ns typ at 3.3V
• Schmitt-trigger inputs for noise immunity
• Small package: 8-DSBGA (1.6mm x 1.6mm)
• ESD protection: 2kV HBM, 1kV CDM

Target Applications

• 5G base station control logic: Used for signal inversion and level shifting in power management modules.
• Automotive dashboard displays: Drives indicator LEDs via open-drain outputs with low power.
• Portable medical devices: Battery-powered glucose meters and pulse oximeters requiring ultra-low power.
• IoT sensors: Wireless temperature and humidity sensors for smart buildings.
• Consumer electronics: Smartwatches and fitness trackers for logic gating.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AUP3G06YFPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AUP3G06YFPR 是德州儀器推出的三路開漏輸出反相器，專為超低功耗應用設計。採用緊湊的 8-DSBGA 封裝，工作電壓範圍為 0.8V 至 3.6V，非常適合電池供電和便攜設備。該器件包含三個獨立的反相器門，具有開漏輸出，支持線與配置和電平轉換。在 3.3V 下典型傳播延遲為 2.9ns，提供高速性能，同時靜態電流僅 0.9µA（最大值）。SN74AUP3G06YFPR 屬於 TI 先進的 AUP 系列，確保低靜態和動態功耗。

詳細技術參數

核心特性

• 超低功耗：最大 ICC 0.9µA
• 寬電源電壓範圍：0.8V 至 3.6V
• 開漏輸出，支持線與和電平轉換
• 高速：3.3V 時典型 tpd 2.9ns
• 施密特觸發輸入，增強噪聲抗擾度
• 小型封裝：8-DSBGA (1.6mm x 1.6mm)
• ESD 保護：2kV HBM, 1kV CDM

典型應用場景

• 5G 基站控制邏輯：用於電源管理模塊中的信號反相和電平轉換。
• 汽車儀表盤顯示：通過開漏輸出驅動指示燈，功耗低。
• 便攜醫療設備：電池供電的血糖儀和脈搏血氧儀，需要超低功耗。
• 物聯網傳感器：智能樓宇中的無線溫濕度傳感器。
• 消費電子：智能手錶和健身追踪器中的邏輯門控。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AUP3G06YFPR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
