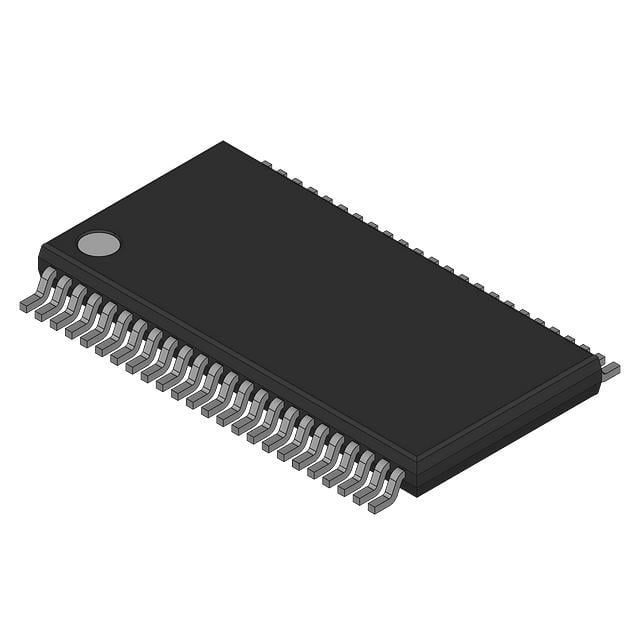

SN74AVC16245DGG TI Bus Transceiver | 48-TSSOP | 16-bit, 1.2V-3.6V

Product Overview

The SN74AVC16245DGG is a 16-bit (dual 8-bit) bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It operates with a wide supply voltage range from 1.2V to 3.6V, making it suitable for low-voltage applications. The device features non-inverting 3-state outputs and is packaged in a 48-pin TSSOP (Thin Shrink Small Outline Package). It supports bidirectional data flow with direction control (DIR) and output enable (OE) inputs. The AVC family offers high speed and low power consumption, ideal for modern digital systems.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.2V to 3.6V
• 16-bit bidirectional bus transceiver with 3-state outputs
• High speed: tpd = 3.5 ns max at 3.3V
• Low power consumption: ICC = 10 µA max
• Supports partial power-down mode (Ioff)
• ESD protection: 2000V HBM, 1000V CDM
• Packaged in 48-pin TSSOP for space-saving
• Compatible with mixed-voltage systems

Target Applications

• 5G base station control boards
• Automotive dashboard display interfaces
• Industrial automation PLC modules
• Networking equipment (routers, switches)
• Data storage systems (SSD controllers)
• Consumer electronics (smart TVs, gaming consoles)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AVC16245DGG. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74AVC16245DGG 是德州儀器（TI）推出的一款16位（雙8位）匯流排收發器，專為數據匯流排之間的異步通信設計。它支持1.2V至3.6V的寬電源電壓範圍，適用於低電壓應用。該器件具有非反相三態輸出，採用48引腳TSSOP封裝。通過方向控制（DIR）和輸出使能（OE）引腳實現雙向數據傳輸。AVC系列具有高速和低功耗的特點，非常適合現代數字系統。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.2V 至 3.6V
• 16位雙向匯流排收發器，帶三態輸出
• 高速：tpd = 最大3.5 ns (3.3V時)
• 低功耗：ICC = 最大10 µA
• 支持部分斷電模式 (Ioff)
• ESD保護：2000V HBM，1000V CDM
• 採用48引腳TSSOP封裝，節省空間
• 兼容混合電壓系統

典型應用場景

• 5G基站控制板
• 汽車儀表盤顯示接口
• 工業自動化PLC模塊
• 網絡設備（路由器、交換機）
• 數據存儲系統（SSD控制器）
• 消費電子（智能電視、遊戲主機）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74AVC16245DGG 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
