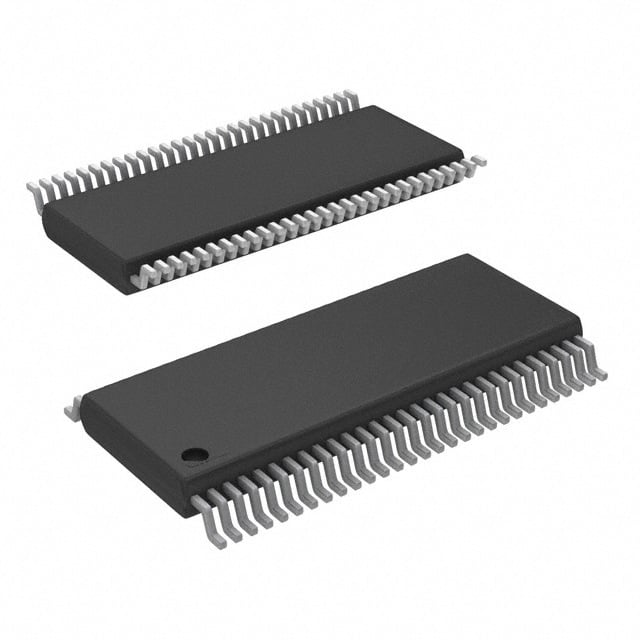

SN74AVCH20T245VR TI Voltage Level Translator | 56-TVSOP | 20-bit, 1.2V-3.6V

Product Overview

The SN74AVCH20T245VR is a 20-bit (dual-supply) voltage level translator from Texas Instruments, designed for bidirectional voltage translation between different voltage nodes. It operates with VCCA from 1.2V to 3.6V and VCCB from 1.65V to 3.6V, making it suitable for multi-voltage systems. The device features automatic direction sensing, eliminating the need for direction control signals. Packaged in a 56-pin TVSOP (Thin Very Small Outline Package), it offers a compact solution for high-density applications.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation with automatic direction sensing
• Supports mixed-voltage systems: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V
• High data rate up to 500 Mbps
• Low power consumption with ICC of 20 µA max
• Ioff partial-power-down mode disables outputs when VCC is 0V
• ESD protection exceeds JESD 22 specification

Target Applications

• 5G base station control boards (e.g., interfacing FPGA with 1.8V logic to 3.3V peripherals)
• Automotive dashboard displays (e.g., connecting 1.2V processor to 3.3V display driver)
• Industrial PLC modules (e.g., translating between 2.5V and 3.3V sensor interfaces)
• Consumer electronics (e.g., smartphone camera module interface)
• Networking equipment (e.g., router backplane level translation)
