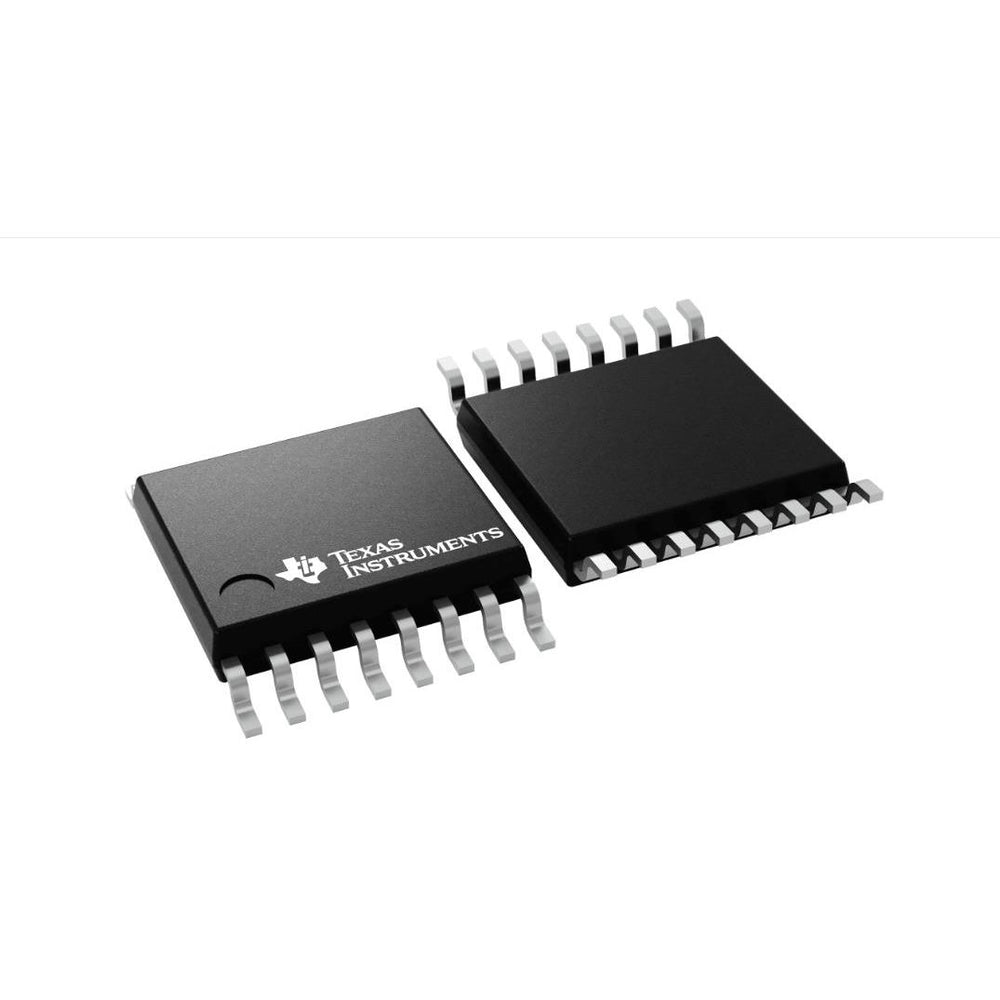

SN74AVCH4T245DGVR TI Voltage Level Translator | 16-TVSOP | 4-Bit, Dual-Supply

Product Overview

The SN74AVCH4T245DGVR is a 4-bit non-inverting bus transceiver from Texas Instruments, designed for asynchronous communication between two voltage nodes. It operates with dual supply voltages from 1.2V to 3.6V on the A port and 1.65V to 3.6V on the B port, making it ideal for level translation in mixed-voltage systems. The device features direction control (DIR) and output enable (OE) pins, and supports partial power-down mode (Ioff) to prevent backflow current when powered off. Packaged in a 16-pin TVSOP, it is suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual-supply voltage translation: 1.2V to 3.6V on A port, 1.65V to 3.6V on B port
• High data rate: up to 500 Mbps
• Partial power-down mode (Ioff) prevents backflow current
• ESD protection exceeds JESD 22: ±8 kV HBM
• Low static power consumption (ICC = 10 µA max)
• Bus hold on data inputs eliminates need for external pull-up resistors
• Packaged in small 16-TVSOP for space-saving designs

Target Applications

The SN74AVCH4T245DGVR is ideal for level translation in various systems, including:

• 5G base stations: translating control signals between 1.8V and 3.3V logic domains
• Automotive dashboard: interfacing 1.8V sensors with 3.3V microcontrollers
• Industrial PLCs: bridging 2.5V and 3.3V I/O modules
• Consumer electronics: connecting 1.2V application processors to 1.8V peripherals
• Networking equipment: level shifting for Ethernet PHY and FPGA interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AVCH4T245DGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
