SN74AXC1T45DTQR TI Level Translator | 6-X2SON (1x0.8) | 1-Bit, 0.65V-3.6V

Product Overview

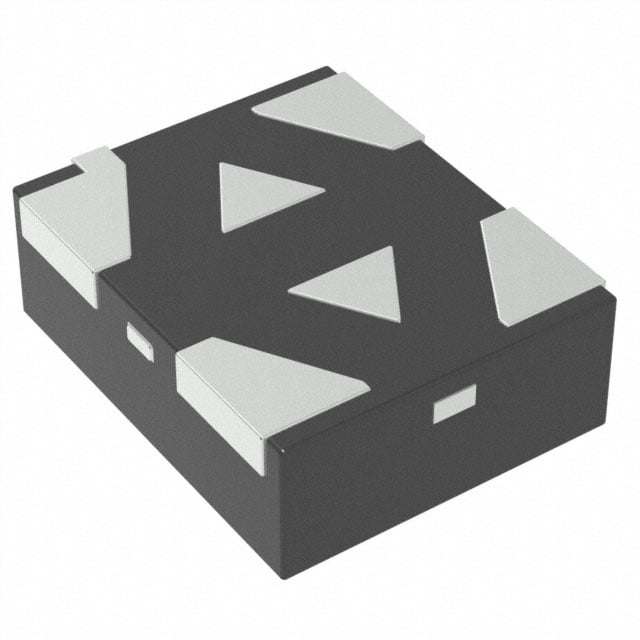

The SN74AXC1T45DTQR is a single-bit, dual-supply non-inverting voltage level translator from Texas Instruments. It features automatic direction sensing and is designed for asynchronous communication between two voltage nodes. The device supports a wide supply voltage range from 0.65 V to 3.6 V on both VCCA and VCCB, making it ideal for low-voltage applications. Housed in a compact 6-X2SON (1x0.8 mm) package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Automatic direction sensing eliminates the need for direction control signals.
• Wide supply voltage range supports multiple low-voltage standards.
• High data rate up to 500 Mbps for fast signal translation.
• Ultra-small package saves board space.
• Low power consumption with 1.5 µA typical quiescent current.
• IEC 61000-4-2 ESD protection (contact ±8 kV, air ±15 kV).

Target Applications

The SN74AXC1T45DTQR is ideal for level translation in various applications, including:

• 5G base stations: translating control signals between 1.8V and 0.8V logic.
• Automotive dashboards: interfacing sensors with different voltage domains.
• Portable electronics: battery-powered devices requiring low-voltage operation.
• Industrial automation: PLC I/O modules with mixed voltage levels.
• IoT devices: connecting low-power MCUs to peripherals.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AXC1T45DTQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
