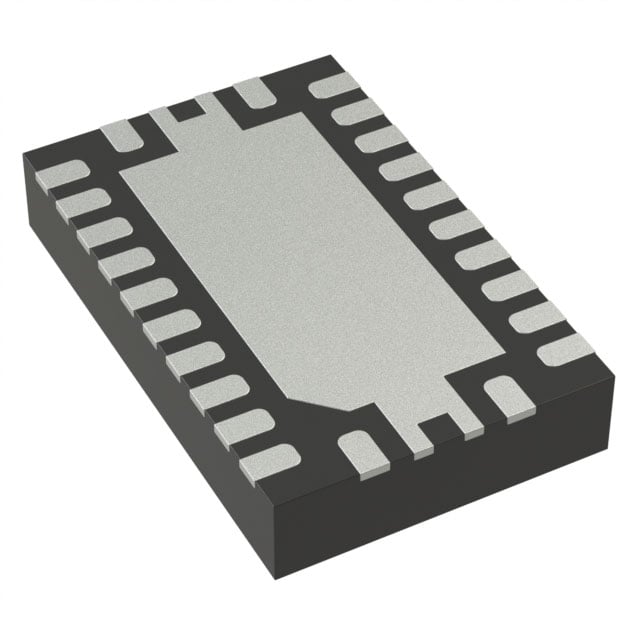

SN74AXCH8T245RHLR TI 8-Bit Dual-Supply Bus Transceiver | 24-VQFN (5.5x3.5) | 0.65-3.6V, 500Mbps

Product Overview

The SN74AXCH8T245RHLR is a high-performance 8-bit (octal) non-inverting bus transceiver from Texas Instruments, designed for bidirectional voltage-level translation between two independent supply rails. Housed in a compact 24-VQFN (5.5x3.5 mm) package, this device supports a wide supply voltage range from 0.65 V to 3.6 V on both ports (A and B), making it ideal for low-power and mixed-voltage systems. It features automatic direction sensing (Auto-Direction Sense) which eliminates the need for a direction control pin, simplifying board design. With a data rate of up to 500 Mbps, it is suitable for high-speed signal translation in modern digital interfaces.

Detailed Technical Specifications

Key Features

• Wide supply range: 0.65 V to 3.6 V on both ports
• High-speed operation: up to 500 Mbps
• Auto-Direction Sense simplifies design
• Low power consumption: ICC typically 10 µA
• Partial power-down mode (Ioff) prevents backflow current
• ESD protection exceeds JESD 22
• Available in space-saving 24-VQFN package

Target Applications

• 5G base station control boards (e.g., interfacing FPGA with low-voltage sensors)
• Automotive dashboard displays (e.g., connecting MCU to TFT panel)
• Industrial PLC modules (e.g., translating between 1.8V and 3.3V logic)
• Portable medical devices (e.g., battery-powered patient monitors)
• Networking equipment (e.g., router backplane signal translation)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74AXCH8T245RHLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
