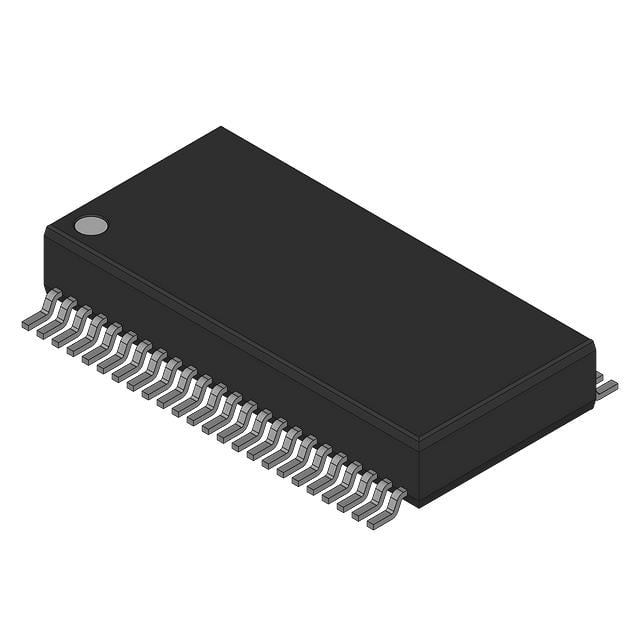

SN74CBT16209DLR TI Bus Switch | 24-Bit | 2-Port, 5V Tolerant

Product Overview

The SN74CBT16209DLR from Texas Instruments is a high-performance 24-bit bus switch designed for bidirectional voltage translation and signal isolation. It features two 12-bit ports with independent output enable controls, making it ideal for multiplexing and bus isolation in mixed-voltage systems. The device operates with a wide VCC range of 4.5V to 5.5V and supports 5V tolerant I/Os, ensuring compatibility with legacy and modern logic families. Its low on-state resistance (5 Ω typical) minimizes signal distortion, while the flow-through pinout simplifies PCB layout.

Detailed Technical Specifications

Key Features

• Bidirectional 24-bit bus switch with two 12-bit ports
• Low on-state resistance (5 Ω) for minimal signal attenuation
• 5V tolerant I/Os for mixed-voltage systems
• Flow-through pinout for easy board routing
• Independent output enable controls for each port
• Low power consumption (ICC max 3 μA)
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station backplane bus isolation
• Automotive dashboard display multiplexing
• Industrial PLC I/O module signal routing
• Telecommunications line card switching
• Data acquisition systems for sensor arrays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBT16209DLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74CBT16209DLR 是德州儀器（TI）推出的一款高性能 24 位總線開關，專為雙向電壓轉換和信號隔離設計。該器件包含兩個 12 位端口，每個端口具有獨立的輸出使能控制，適用於混合電壓系統中的多路復用和總線隔離。工作電壓範圍為 4.5V 至 5.5V，I/O 支持 5V 耐壓，確保與傳統及現代邏輯系列的兼容性。低導通電阻（典型值 5 Ω）可最大限度減少信號失真，而流暢的引腳排列簡化了 PCB 佈局。

詳細技術參數

核心特性

• 雙向 24 位總線開關，兩個 12 位端口
• 低導通電阻 (5 Ω) 減少信號衰減
• 5V 耐壓 I/O，適用於混合電壓系統
• 流暢引腳排列，便於電路板佈線
• 每個端口獨立輸出使能控制
• 低功耗 (ICC 最大 3 μA)
• ESD 保護超過 2000V HBM

典型應用場景

• 5G 基站背板總線隔離
• 汽車儀表板顯示多路復用
• 工業 PLC I/O 模塊信號路由
• 電信線路卡切換
• 傳感器陣列數據採集系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74CBT16209DLR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
