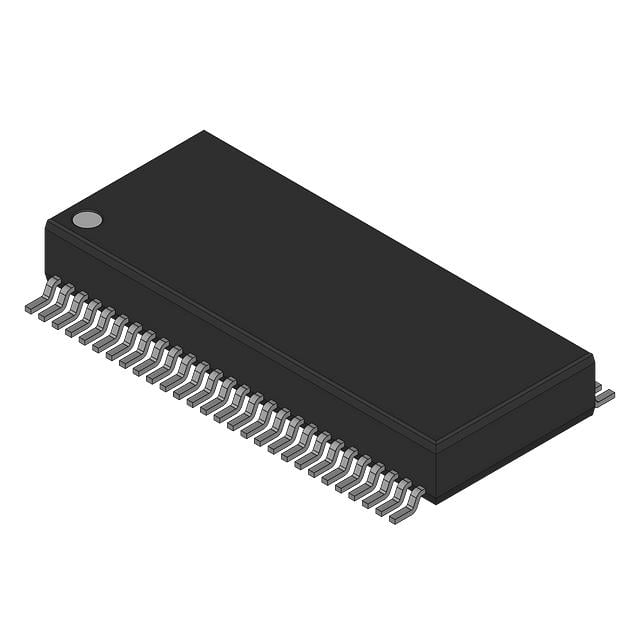

SN74CBT16211DL TI Bus Switch | 24-Channel, 5V, 0.25ns Propagation Delay

Product Overview

The SN74CBT16211DL from Texas Instruments is a high-performance 24-bit bus switch designed for fast and efficient signal routing in digital systems. It features a low on-state resistance (5 Ω typical) and minimal propagation delay (0.25 ns), making it ideal for bus isolation and multiplexing applications. The device operates over a wide supply voltage range of 4.5 V to 5.5 V and supports bidirectional data flow with flow-through pinout for easy PCB layout.

Detailed Technical Specifications

Key Features

• Low on-state resistance (5 Ω) minimizes signal distortion
• Ultra-fast propagation delay (0.25 ns) for high-speed data paths
• Bidirectional data flow with flow-through pinout
• ESD protection exceeds 2000 V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 250 mA per JESD 17

Target Applications

• 5G base station backplane signal routing
• Automotive infotainment dashboard bus isolation
• Industrial PLC I/O module multiplexing
• Server memory module hot-swap control
• Test equipment signal switching

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBT16211DL. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
