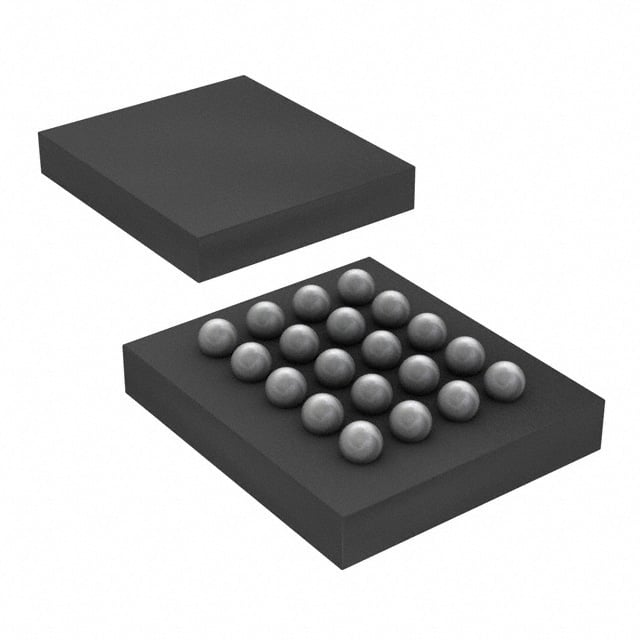

SN74CBT3245AGQNR TI Bus Switch | 20-BGAMICROSTARJUNIOR（4X3） | 8-Bit, 5V

Product Overview

The SN74CBT3245AGQNR is a high-performance 8-bit bus switch from Texas Instruments (TI), designed for bidirectional voltage translation and signal routing in digital systems. Housed in a compact 20-pin BGA MICROSTAR JUNIOR (4x3 mm) package, it offers low on-state resistance (5 Ω typical) and wide voltage range (4.5 V to 5.5 V), making it ideal for bus isolation, level shifting, and hot-swap applications. The device features two ports (A and B) with independent control via the output-enable (OE) pin, ensuring minimal propagation delay and low power consumption.

Detailed Technical Specifications

Key Features

• Bidirectional 8-bit bus switch with low on-state resistance (5 Ω)
• Wide supply voltage range: 4.5 V to 5.5 V
• High bandwidth: 100 MHz
• Low propagation delay: 0.25 ns
• Low power consumption: ICC max 3 mA
• Output-enable (OE) pin for bus isolation
• Flow-through pinout for easy PCB layout
• ESD protection: 2 kV HBM

Target Applications

• 5G base station: Signal routing between baseband and RF modules
• Automotive dashboard: Data bus isolation for infotainment systems
• Industrial automation: PLC I/O module switching
• Telecommunications: Hot-swap backplane interfaces
• Consumer electronics: Smartphone motherboard signal multiplexing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBT3245AGQNR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
