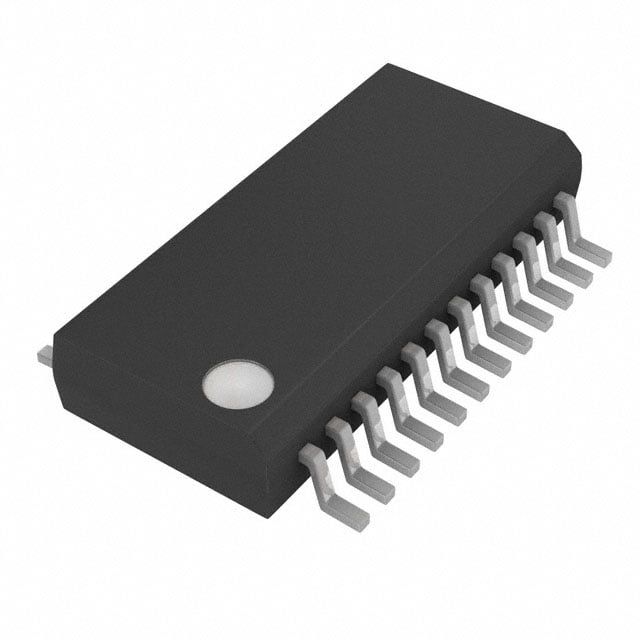

SN74CBTD3384CDBQR TI Bus Switch | 24-SSOP | 10-bit, 5V Tolerant

Product Overview

The SN74CBTD3384CDBQR is a high-performance 10-bit bus switch from Texas Instruments, designed for bidirectional signal routing and isolation in digital systems. Housed in a compact 24-SSOP package, this device features low on-state resistance (5 Ω typical) and 5V tolerant I/Os, making it ideal for voltage translation and bus isolation applications. It operates over a wide supply voltage range of 4.5V to 5.5V and supports high-speed data rates up to 200 MHz. The SN74CBTD3384CDBQR is part of TI's CBT family, known for its low power consumption and minimal propagation delay.

Detailed Technical Specifications

Key Features

• 10-bit bidirectional bus switch with low on-state resistance
• 5V tolerant I/Os for voltage level translation
• Low propagation delay (0.25 ns) for high-speed applications
• Low power consumption (ICC = 3 μA max)
• Supports hot insertion and live insertion
• Flow-through pinout for easy PCB layout
• ESD protection exceeds 2 kV HBM

Target Applications

• 5G base station: Signal routing between baseband and RF modules
• Automotive dashboard: Bus isolation for infotainment and instrument cluster
• Industrial automation: PLC I/O module switching
• Networking equipment: Router and switch backplane isolation
• Consumer electronics: Smart TV and set-top box signal multiplexing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74CBTD3384CDBQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
