SN74GTLP22034GQLR TI Bus Transceiver | 56-BGAMICROSTARJUNIOR（7X4.5） | 8-Bit, 3.3V, 100MHz

Product Overview

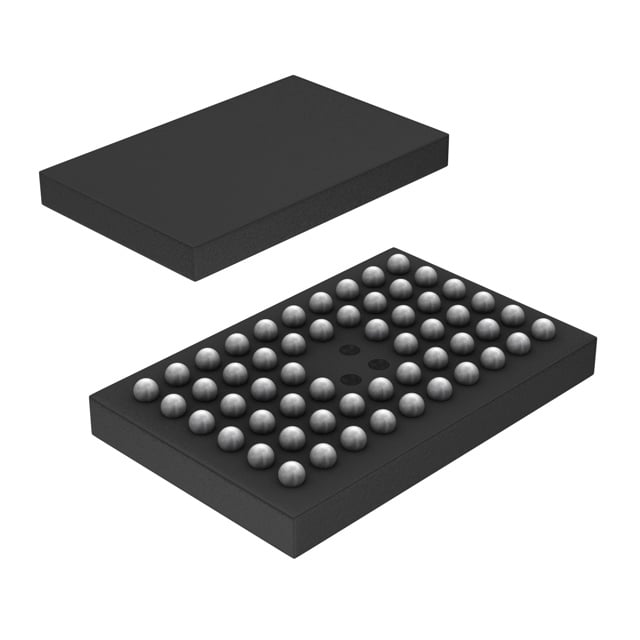

The SN74GTLP22034GQLR is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional voltage translation between GTLP (Gunning Transceiver Logic Plus) and LVTTL (Low-Voltage TTL) logic levels. It operates at a nominal supply voltage of 3.3V and supports data rates up to 100 MHz. The device is housed in a compact 56-pin BGA MICROSTAR JUNIOR package (7x4.5 mm), making it ideal for space-constrained applications. It features split-rail architecture with VREF and VCC pins for flexible level shifting, and includes bus-hold circuitry to eliminate the need for external pull-up resistors.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation between GTLP and LVTTL levels
• Bus-hold circuitry eliminates external pull-up resistors
• Split-rail architecture with separate VREF and VCC pins
• Low propagation delay (3.5 ns typical)
• High drive capability (±24 mA)
• Power-down high-impedance outputs
• ESD protection exceeds 2000V HBM

Target Applications

• 5G base station backplane interfaces
• Automotive dashboard display modules
• Industrial control systems with mixed-voltage buses
• Telecommunications line cards
• Data communication routers and switches

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74GTLP22034GQLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
