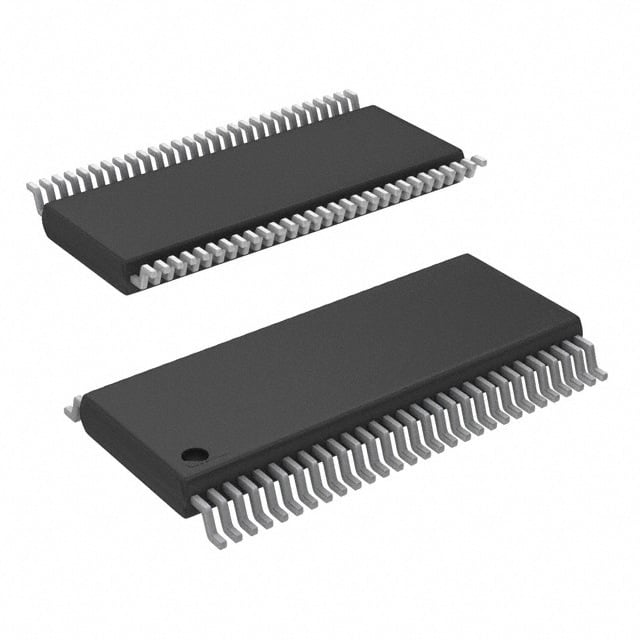

SN74GTLPH1645DGVR TI 16-Bit Bus Transceiver | 56-TVSOP | 3.3V, 100mA

Product Overview

The SN74GTLPH1645DGVR is a 16-bit (dual 8-bit) bus transceiver from Texas Instruments, designed for GTLP (Gunning Transceiver Logic Plus) to TTL/CMOS level translation. It operates with a 3.3V supply and features 3-state outputs, making it ideal for high-speed backplane and memory interface applications. The device is housed in a compact 56-pin TVSOP package, offering space-saving benefits for dense PCB layouts.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation between GTLP and TTL/CMOS levels
• Supports live insertion and hot-swap applications
• Low propagation delay (3.5 ns typical) for high-speed data transfer
• 3-state outputs for bus-oriented applications
• ESD protection exceeds 2000V HBM
• Available in space-saving 56-pin TVSOP package

Target Applications

• 5G base station backplane interfaces (e.g., data bus between FPGA and processor)
• Automotive dashboard display modules (e.g., LVDS to TTL conversion)
• Memory modules (e.g., DDR3/DDR4 DIMM address and control buses)
• Telecommunications switching equipment (e.g., line card interface)
• Industrial control systems (e.g., PLC backplane communication)
