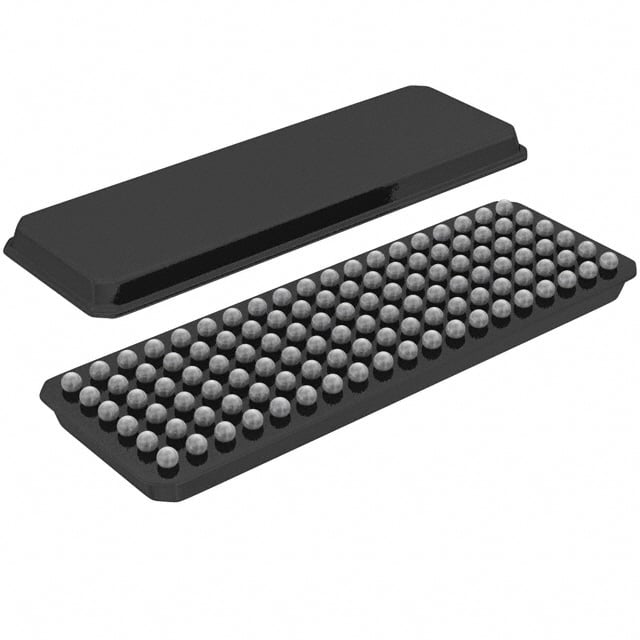

SN74GTLPH3245GKFR TI 24-Bit Bus Transceiver | 114-BGAMICROSTAR (16X5.5) | 3.3V, 100MHz

Product Overview

The SN74GTLPH3245GKFR is a 24-bit bus transceiver from Texas Instruments, designed for high-speed signal translation between GTLP (Gunning Transceiver Logic Plus) and LVTTL (Low-Voltage TTL) levels. Housed in a compact 114-BGAMICROSTAR (16x5.5 mm) package, it supports bidirectional data flow with direction control (DIR) and output enable (OE) pins. Operating from a 3.3V supply, it delivers up to 100 MHz switching frequency, making it ideal for high-density, high-speed backplane and memory interface applications.

Detailed Technical Specifications

Key Features

• Bidirectional 24-bit bus transceiver with direction control
• GTLP to LVTTL/LVCMOS level translation
• High-speed operation: up to 100 MHz
• Low propagation delay: 3.5 ns max
• 3.3V supply voltage with 5V tolerant I/Os
• Bus-hold circuitry eliminates need for external pull-up resistors
• Flow-through pinout for easy PCB layout
• Industrial temperature range: -40°C to +85°C

Target Applications

• 5G base station backplane interfaces (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive infotainment and dashboard systems (e.g., Tesla Model 3 central display)
• High-speed memory interfaces (DDR3/DDR4 DIMMs)
• Telecommunications switching equipment (e.g., Cisco Nexus 9000 series)
• Industrial control and automation (e.g., Siemens SIMATIC S7-1500)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74GTLPH3245GKFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
