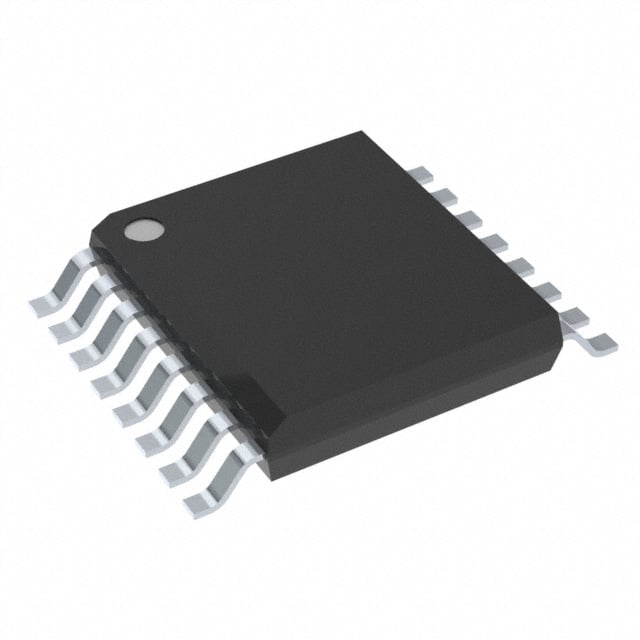

SN74HC4060DBR TI Counter IC | 16-SSOP | 14-Stage, Binary Ripple

Product Overview

The SN74HC4060DBR from Texas Instruments is a 14-stage binary ripple counter with an integrated oscillator, housed in a compact 16-SSOP package. It is part of the HC family, offering high-speed CMOS technology with low power consumption. The device includes a built-in oscillator stage that can be configured with external components (resistor and capacitor) to generate clock signals, or it can be driven by an external clock. The counter advances on the negative-going edge of the clock input, and it provides 10 parallel outputs (Q4 to Q14) for flexible counting applications. The SN74HC4060DBR is ideal for timing, frequency division, and time-delay generation in various electronic systems.

Detailed Technical Specifications

Key Features

• 14-stage binary ripple counter with integrated oscillator
• Wide operating voltage range: 2 V to 6 V
• High-speed operation: typical clock frequency up to 30 MHz at 5 V
• Low power consumption: typical ICC of 8 µA at 25°C
• 10 parallel outputs (Q4 to Q14) for flexible counting
• Master reset (MR) input to clear the counter
• Oscillator configuration with external RC components or external clock input
• Edge-triggered on negative-going clock input
• Compatible with TTL levels
• Available in SSOP package for space-saving designs

Target Applications

• 5G base station timing and synchronization circuits
• Automotive dashboard display timing control
• Industrial automation frequency dividers
• Consumer electronics time-delay generators
• Medical equipment pulse counting
• IoT sensor node timing modules
