Product Overview

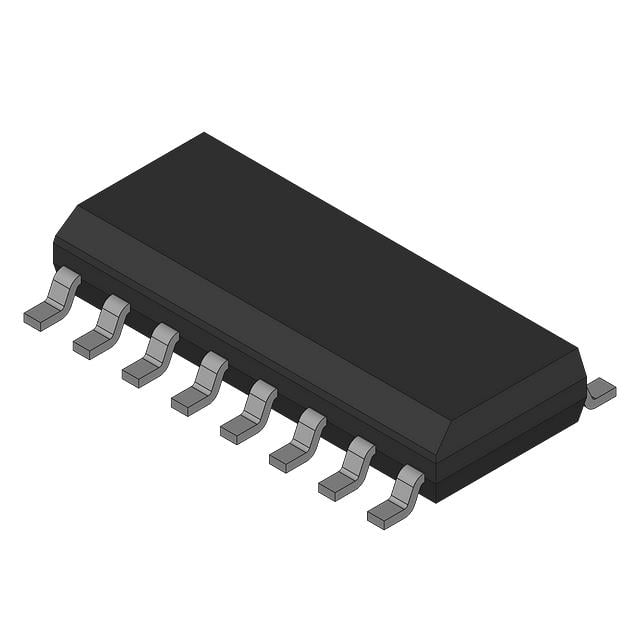

The SN74LS107ANS is a dual J-K flip-flop integrated circuit from Texas Instruments (TI), designed for high-performance digital systems. It features individual J, K, clock, and clear inputs for each flip-flop, with complementary Q and Q̅ outputs. This device is part of the 74LS family, offering low power consumption and high noise immunity. It operates from a 5V supply and is ideal for applications requiring reliable edge-triggered storage and counting functions.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 4.75V to 5.25V
Input High Voltage (VIH) 2.0V min
Input Low Voltage (VIL) 0.8V max
Output High Voltage (VOH) 2.7V min (IOH = -0.4mA)
Output Low Voltage (VOL) 0.5V max (IOL = 8mA)
Propagation Delay (tPLH/tPHL) 15ns typ (CL = 15pF)
Maximum Clock Frequency 3 MHz
Operating Temperature 0°C to 70°C
Package SOIC-16

Key Features

  • Dual J-K flip-flops with individual clear inputs
  • Edge-triggered clocking for reliable operation
  • Complementary outputs (Q and Q̅)
  • Low power consumption: 20mW per flip-flop typical
  • High noise immunity: 0.4V typical
  • Input clamp diodes for transient protection
  • Fully compatible with TTL logic levels

Target Applications

  • Digital counters and frequency dividers in 5G base station control logic
  • Shift registers for automotive dashboard displays
  • Data storage and synchronization in industrial PLCs
  • State machines in consumer electronics like smart home hubs
  • Clock generation and division in networking equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS107ANS. Our core advantages include:

  • 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
  • In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
  • HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
  • Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
  • BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

  • 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
  • RoHS Compliant: All electronic components comply with international environmental and safety standards.
  • Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
