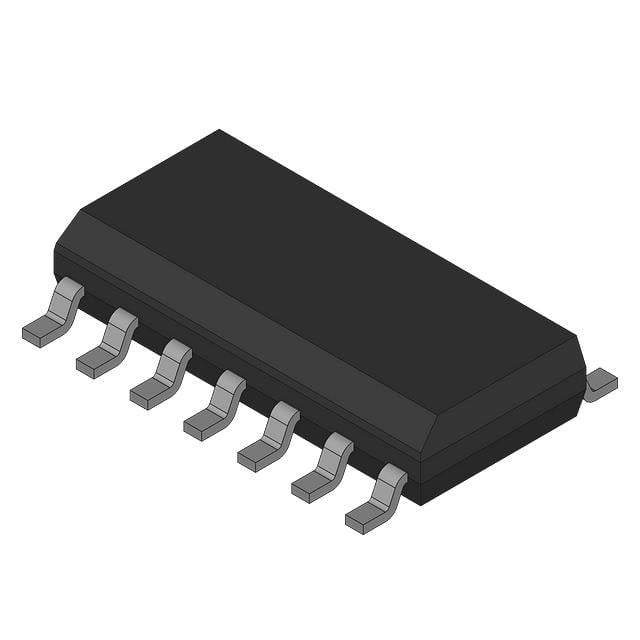

SN74LS24AD TI Logic Gates | 4-ch, 2-input NAND, LS Family

Product Overview

The SN74LS24AD is a high-performance quad 2-input NAND gate from Texas Instruments, part of the 74LS family. It features Schottky-clamped transistors for enhanced speed without sacrificing power efficiency. This device is designed for use in a wide range of digital logic applications, offering reliable operation over a broad voltage and temperature range.

Detailed Technical Specifications

Key Features

• Quad 2-input NAND gate configuration
• Schottky-clamped for high speed
• Low power consumption: 22mW per gate typical
• Wide operating voltage range: 4.75V to 5.25V
• High noise immunity: typical 1V
• Compatible with TTL and CMOS logic levels
• Standard 14-pin SOIC package

Target Applications

• 5G base station control logic
• Automotive dashboard display controllers
• Industrial automation PLCs
• Consumer electronics like smart home hubs
• Data communication equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS24AD. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
